DLCBSHD-25M-19

Active

Essentra Access Solutions

BRD SPT SNAP LOCK NYLON 25MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DLCBSHD-25M-19

Between Board Height	0.984 in
Between Board Height	25 mm
Features	Winged
Holding Type	Snap Lock
Length - Overall [x]	1.677 in
Length - Overall [x]	42.6 mm
Material	Nylon
Mounting Hole Diameter [diameter]	0.25 in
Mounting Hole Diameter [diameter]	6.35 mm
Mounting Hole Diameter [diameter]	0.25 in
Mounting Panel Thickness [Max]	0.087 "
Mounting Panel Thickness [Max]	2.2 mm
Mounting Panel Thickness [Min]	0.79 mm
Mounting Panel Thickness [Min]	0.031 in
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.25 "
Support Hole Diameter [diameter]	6.35 mm
Support Hole Diameter [diameter]	0.25 "
Support Panel Thickness [Max]	2.2 mm
Support Panel Thickness [Max]	0.087 in
Support Panel Thickness [Min]	0.031 in
Support Panel Thickness [Min]	0.79 mm

DLCBS Series

Part	Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Holding Type	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Panel Thickness [Max]	Support Panel Thickness [Max]	Support Panel Thickness [Min]	Support Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Between Board Height	Between Board Height	Mounting Type	Features	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Between Board Height	Support Panel Thickness	Length - Overall
Essentra Access Solutions DLCBSHD-20M-01	Nylon	0.25 in	6.35 mm	0.25 in	Snap Lock	0.25 "	6.35 mm	0.25 "	2.2 mm	0.087 in	0.031 in	0.79 mm	0.087 "	0.79 mm	0.031 in	2.2 mm	20 mm	0.787 in	Snap Lock	Winged	1.48 in	37.6 mm
Essentra Access Solutions DLCBS-8-01	Nylon	3.96 mm	0.156 in		Snap Lock	0.15625 in	3.96 mm	0.156 in	1.98 mm	0.078 "	0.031 in	0.79 mm	0.078 "	0.79 mm	0.031 in	1.98 mm	12.7 mm	0.5 in	Snap Lock	Winged	1.161 in	29.5 mm	0.15625 in	0.5 in
Essentra Access Solutions DLCBS-10-01	Nylon	3.96 mm	0.156 in		Snap Lock	0.15625 in	3.96 mm	0.156 in	1.98 mm	0.078 "	0.031 in	0.79 mm	0.078 "	0.79 mm	0.031 in	1.98 mm	15.88 mm	0.625 in	Snap Lock	Winged	1.287 in	32.7 mm	0.15625 in	0.625 in
Essentra Access Solutions DLCBSHD-25M-19	Nylon	0.25 in	6.35 mm	0.25 in	Snap Lock	0.25 "	6.35 mm	0.25 "	2.2 mm	0.087 in	0.031 in	0.79 mm	0.087 "	0.79 mm	0.031 in	2.2 mm	25 mm	0.984 in	Snap Lock	Winged	1.677 in	42.6 mm
Essentra Access Solutions DLCBSHD-10M-01	Nylon	0.25 in	6.35 mm	0.25 in	Snap Lock	0.25 "	6.35 mm	0.25 "	2.2 mm	0.087 in	0.031 in	0.79 mm	0.087 "	0.79 mm	0.031 in	2.2 mm	10 mm	0.394 in	Snap Lock	Winged	1.087 "	27.6 mm
Essentra Access Solutions DLCBS4-4-01	Nylon	3 in	4.75 mm	0.187 in	Snap Lock	0.15625 in	3.96 mm	0.156 in		0.078 "	0.051 in		0.078 "	0.79 mm	0.031 in	1.98 mm	6.1 mm	0.24 in	Snap Lock	Winged	0.831 in	21.1 mm			1.3 mm 1.98 mm
Essentra Access Solutions DLCBS-14-01	Nylon	3.96 mm	0.156 in		Snap Lock	0.15625 in	3.96 mm	0.156 in	1.98 mm	0.078 "	0.031 in	0.79 mm	0.078 "	0.79 mm	0.031 in	1.98 mm	0.875 in	0.875 in	Snap Lock	Winged	1.535 "		0.15625 in	22.23 mm		39 mm
Essentra Access Solutions DLCBS4-5-01	Nylon	3 in	4.75 mm	0.187 in	Snap Lock	0.15625 in	3.96 mm	0.156 in		0.078 "	0.051 in		0.078 "	0.79 mm	0.031 in	1.98 mm	9.1 mm	0.358 in	Snap Lock	Winged	0.945 in	24 mm			1.3 mm 1.98 mm
Essentra Access Solutions DLCBS4-8-01	Nylon	3 in	4.75 mm	0.187 in	Snap Lock	0.15625 in	3.96 mm	0.156 in		0.078 "	0.051 in		0.078 "	0.79 mm	0.031 in	1.98 mm	18.8 mm	0.74 in	Snap Lock	Winged	1.331 in	33.8 mm			1.3 mm 1.98 mm
Essentra Access Solutions DLCBS-12-19	Nylon	3.96 mm	0.156 in		Snap Lock	0.15625 in	3.96 mm	0.156 in	1.98 mm	0.078 "	0.031 in	0.79 mm	0.078 "	0.79 mm	0.031 in	1.98 mm	19.05 mm	0.75 in	Snap Lock	Winged	1.413 in	35.9 mm	0.15625 in	0.75 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.18
		5	$ 0.15
		10	$ 0.14
		25	$ 0.13
		50	$ 0.12
		100	$ 0.11
		250	$ 0.10
		500	$ 0.10
		1000	$ 0.09

Description

General part information

DLCBS Series

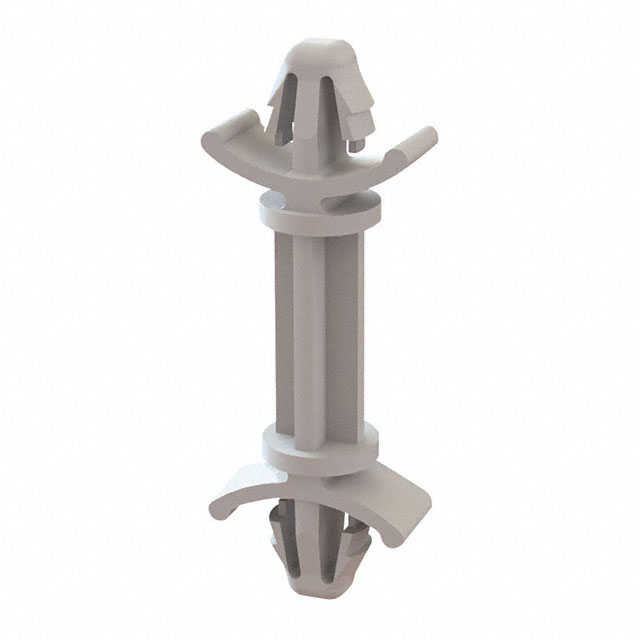

Board Support Snap Lock / Snap Lock Nylon 0.984" (25.00mm)
