PTGL07AR560M9A51B0

Obsolete

Murata Power Solutions Inc.

PTC RESET FUSE 265V 95MA RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPTC Thermistors (POSISTOR) Part Numbering

PTGL07AR560M9A51B0

Obsolete

Murata Power Solutions Inc.

PTC RESET FUSE 265V 95MA RADIAL

Deep-Dive with AI

DocumentsPTC Thermistors (POSISTOR) Part Numbering

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PTGL07AR560M9A51B0

Approval Agency	UL
Current - Hold (Ih) (Max) [Max]	95 mA
Current - Max [Max]	800 mA
Current - Trip (It)	165 mA
Height - Seated (Max) [Max]	14.2 mm
Height - Seated (Max) [Max]	0.559 in
Lead Spacing	5 mm
Lead Spacing	0.197 in
Mounting Type	Through Hole
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Package / Case	Disc, Radial
Resistance - 25°C (Typ)	56 Ohms
Size / Dimension [custom]	6.5 mm
Size / Dimension [custom]	0.256 in
Size / Dimension [diameter]	8.2 mm
Size / Dimension [diameter]	0.323 in
Type	Ceramic
Voltage - Max [Max]	265 V

PTGL07AR Series

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Resistance - 25°C (Typ)	Type	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Current - Trip (It)	Approval Agency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Max [Max]	Current - Max [Max]	Current - Hold (Ih) (Max) [Max]	Lead Spacing	Lead Spacing	Size / Dimension [custom]	Size / Dimension [custom]	Height - Seated (Max) [Max]	Height - Seated (Max)
Murata Power Solutions Inc. PTGL07AR211M3B51A0	Through Hole	-10 °C	60 °C	Disc Radial
Murata Power Solutions Inc. PTGL07AR470M3B51B0	Through Hole			Disc Radial	47 Ohms	Ceramic
Murata Power Solutions Inc. PTGL07AR450H8B52B0	Through Hole	-10 °C	60 °C	Disc Radial	45 Ohms	Ceramic	0.236 "	0.315 "	6 mm	8 mm	200 mA	UL	15 mm	0.591 "	265 V	1 A	105 mA	5 mm	0.197 in
Murata Power Solutions Inc. PTGL07AR560M9A51B0	Through Hole	-10 °C	60 °C	Disc Radial	56 Ohms	Ceramic		0.323 in		8.2 mm	165 mA	UL	0.559 in		265 V	800 mA	95 mA	5 mm	0.197 in	6.5 mm	0.256 in	14.2 mm
Murata Power Solutions Inc. PTGL07AR4R6H2B51A0	Through Hole	-10 °C	60 °C	Disc Radial	4.6 Ohms	Ceramic	0.157 "	0.291 in	4 mm	7.4 mm	610 mA		13.4 mm	0.528 in	30 V	2 A	340 mA	5 mm	0.197 in
Murata Power Solutions Inc. PTGL07AR220M3P51B0	Through Hole	-10 °C	60 °C	Disc Radial	22 Ohms	Ceramic	0.157 "	0.291 in	4 mm	7.4 mm	205 mA		13.4 mm	0.528 in	56 V	1 A	115 mA	5 mm	0.197 in
Murata Power Solutions Inc. PTGL07AR150M5B51B0	Through Hole			Disc Radial	15 Ohms	Ceramic
Murata Power Solutions Inc. PTGL07AR560M9B51A0
Murata Power Solutions Inc. PTGL07AR820M9A51B0	Through Hole	-10 °C	60 °C	Disc Radial	82 Ohms	Ceramic		0.323 in		8.2 mm	125 mA	UL	0.559 in		265 V	500 mA	75 mA	5 mm	0.197 in	6.5 mm	0.256 in	14.2 mm
Murata Power Solutions Inc. PTGL07AR700H8B52B0	Through Hole	-10 °C	60 °C	Disc Radial	70 Ohms	Ceramic	0.236 "	0.315 "	6 mm	8 mm	160 mA	UL		0.551 "	265 V		85 mA	5 mm	0.197 in				14 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PTGL07AR Series

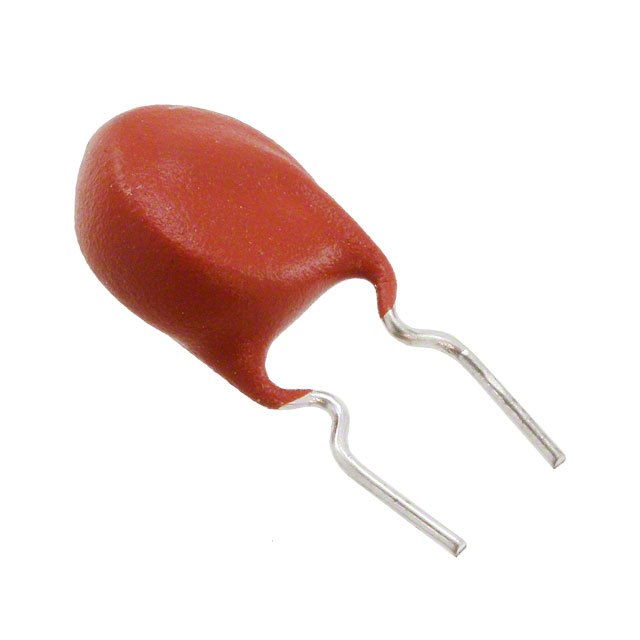

Ceramic PTC Resettable Fuse 265V 95 mA Ih Through Hole Radial, Disc

Documents

Technical documentation and resources

PTC Thermistors (POSISTOR) Part Numbering

Datasheet
