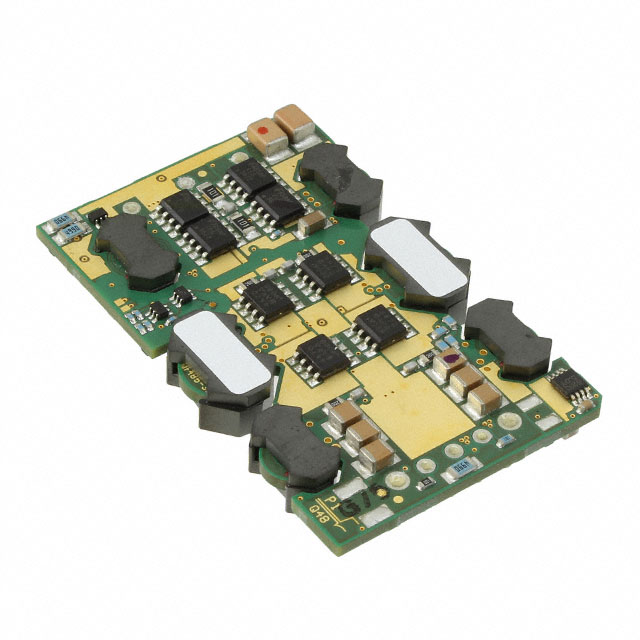

Q48T20050-NAC0G
ObsoleteEOS Power India Private Ltd
DC DC CONVERTER 5V 100W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q48T20050-NAC0G
ObsoleteEOS Power India Private Ltd
DC DC CONVERTER 5V 100W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q48T20050-NAC0G |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 20 A |
| Efficiency | 86 % |
| Features | OTP, Remote On/Off, OVP, UVLO, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1/4 Brick, 8-DIP Module |
| Power (Watts) | 100 W |
| Size / Dimension [x] | 2.3 in |
| Size / Dimension [x] | 58.4 mm |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [z] | 7.7 mm |
| Size / Dimension [z] | 0.3 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 2000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
Q48T20050 Series
Isolated Module DC DC Converter 1 Output 5V 20A 36V - 75V Input
