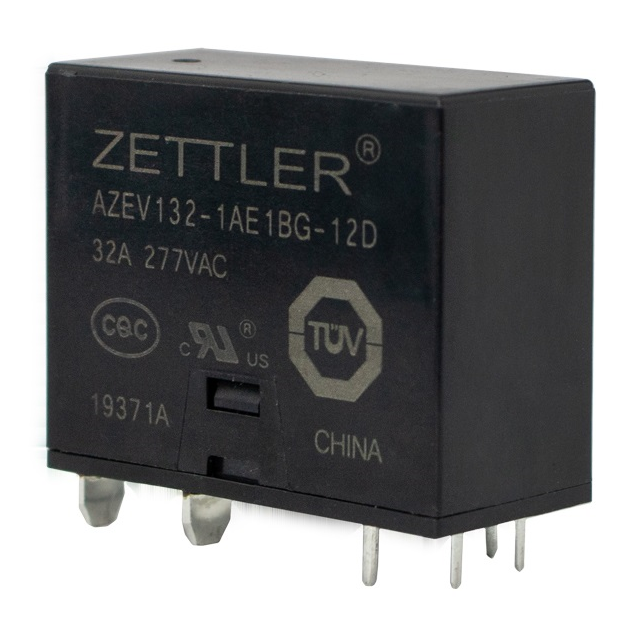

AZEV132-1AE1BG-24D
ActiveAmerican Zettler
RELAY EV CHARGING SPST 32A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AZEV132-1AE1BG-24D |
|---|---|
| Approval Agency | CQC, TUV, cURus |
| Coil Current | 64.5 mA |
| Coil Insulation | Class F |
| Coil Resistance | 372 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi), Silver Tin Oxide (AgSnO), Gold (Au) |
| Contact Rating (Current) | 32 A |
| Features | Contact Weld Detection |
| Load - Max Switching | 12800 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 30 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | EV Charging |
| Release Time | 10 ms |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.74 | |
| 10 | $ 9.13 | |||
| 25 | $ 8.12 | |||
| 50 | $ 7.71 | |||
| 100 | $ 7.31 | |||
| 250 | $ 6.50 | |||
| 450 | $ 6.09 | |||
| 950 | $ 5.68 | |||
Description
General part information
AZEV132 Series
EV Charging Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
