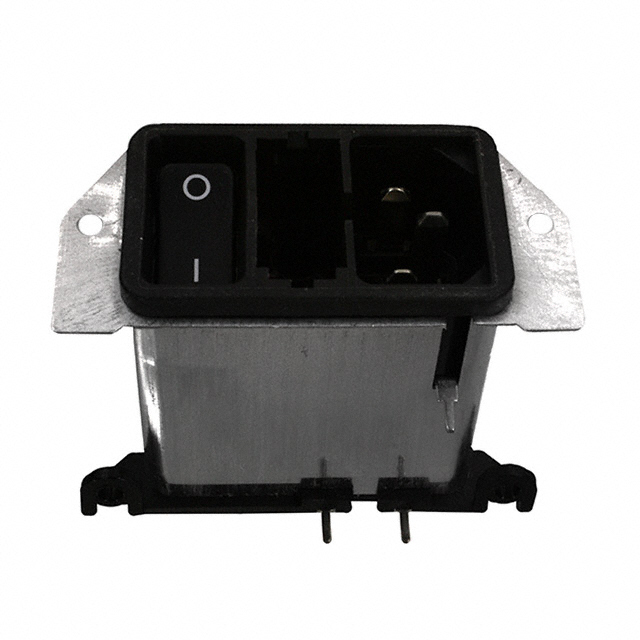

DD22.2121.1111

Active

SCHURTER Inc.

POWER ENTRY MODULE FILTERED M 3 POS 250VAC 2A FUSE/SWITCH RA 1 PORT

Search across all available documentation for this part.

Active

SCHURTER Inc.

POWER ENTRY MODULE FILTERED M 3 POS 250VAC 2A FUSE/SWITCH RA 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	DD22.2121.1111

Accomodates a Fuse	True
Approval Agency	ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	2 A
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle
Panel Thickness	3 mm
Panel Thickness	0.118 in
Switch Features	Switch On-Off
Termination	Solder, Quick Connect - 0.250" (6.3mm)
Voltage Rating - Appliance Inlet	250 VAC

Part	Voltage Rating - Appliance Inlet	Current Rating - Filter	Ingress Protection	Material Flammability Rating	Filter Type	Mounting Type	Switch Features	Approval Agency	Connector Style	Fuse Holder, Drawer	Accomodates a Fuse	Termination	Panel Thickness	Panel Thickness	Current Rating - Appliance Inlet	Connector Type
SCHURTER Inc. DD22.2121.1111	250 VAC	2 A	IP40	UL94 V-0	Filtered (EMI RFI) - Commercial	Panel Mount Flange Through Hole Right Angle	Switch On-Off	cULus ENEC	IEC 320-C14	Drawer Sold Separate		Solder Quick Connect - 0.250" (6.3mm)	3 mm	0.118 in	10 A	Receptacle Male Blades - Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	20	$ 25.83
Digikey	Bulk	1	$ 28.45
		50	$ 27.49

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
