Q-0500W000S006i

Active

Amphenol Custom Cable

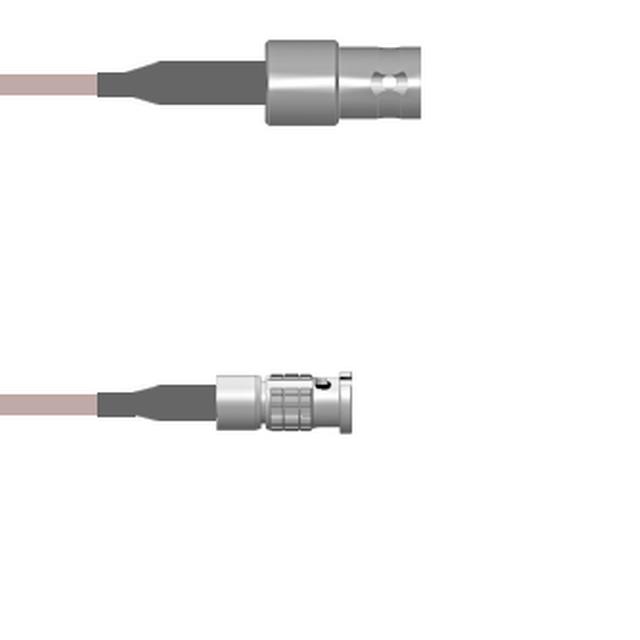

CBL ASSY BNC-HDBNC JACK-PLUG 6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0500W000S006i

Active

Amphenol Custom Cable

CBL ASSY BNC-HDBNC JACK-PLUG 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0500W000S006i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	HD-BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-179
Color	Copper
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	152.4 mm
Length	6 in
Overall Impedance	75 Ohms
Style	BNC to HD-BNC

Q-0500W0 Series

Part	1st Connector	Features	Cable Type	Style	2nd Contact Gender	1st Contact Gender	1st Connector Mounting Type	Color	Overall Impedance	2nd Connector Mounting Type	2nd Connector	Length	Length	Length	Frequency - Max [Max]	Length [x]	Length [x]
Amphenol Custom Cable Q-0500W000S084i	BNC Jack	Shielded	RG-179	BNC to HD-BNC	Male	Female	Free Hanging (In-Line)	Copper	75 Ohms	Free Hanging (In-Line)	HD-BNC Plug	84 in	2.1 m	7 ft	3 GHz
Amphenol Custom Cable Q-0500W000S108i	BNC Jack	Shielded	RG-179	BNC to HD-BNC	Male	Female	Free Hanging (In-Line)	Copper	75 Ohms	Free Hanging (In-Line)	HD-BNC Plug	108 in	2.7 m	9 ft	3 GHz
Amphenol Custom Cable Q-0500W000S006i	BNC Jack	Shielded	RG-179	BNC to HD-BNC	Male	Female	Free Hanging (In-Line)	Copper	75 Ohms	Free Hanging (In-Line)	HD-BNC Plug	6 in	152.4 mm		3 GHz
Amphenol Custom Cable Q-0500W000S.75M	BNC Jack	Shielded	RG-179	BNC to HD-BNC	Male	Female	Free Hanging (In-Line)	Copper	75 Ohms	Free Hanging (In-Line)	HD-BNC Plug	29.53 "	750 mm		3 GHz
Amphenol Custom Cable Q-0500W000S003M	BNC Jack	Shielded	RG-179	BNC to HD-BNC	Male	Female	Free Hanging (In-Line)	Copper	75 Ohms	Free Hanging (In-Line)	HD-BNC Plug	118.1 in	3 m	9.8 '	3 GHz
Amphenol Custom Cable Q-0500W000S060i	BNC Jack	Shielded	RG-179	BNC to HD-BNC	Male	Female	Free Hanging (In-Line)	Copper	75 Ohms	Free Hanging (In-Line)	HD-BNC Plug	5 '	1.5 m	5 ft	3 GHz
Amphenol Custom Cable Q-0500W000S036i	BNC Jack	Shielded	RG-179	BNC to HD-BNC	Male	Female	Free Hanging (In-Line)	Copper	75 Ohms	Free Hanging (In-Line)	HD-BNC Plug	36 in	91.44 cm		3 GHz
Amphenol Custom Cable Q-0500W000S003i	BNC Jack	Shielded	RG-179	BNC to HD-BNC	Male	Female	Free Hanging (In-Line)	Copper	75 Ohms	Free Hanging (In-Line)	HD-BNC Plug	3 in	76.2 mm		3 GHz
Amphenol Custom Cable Q-0500W000S018i	BNC Jack	Shielded	RG-179	BNC to HD-BNC	Male	Female	Free Hanging (In-Line)	Copper	75 Ohms	Free Hanging (In-Line)	HD-BNC Plug				3 GHz	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0500W000S002M	BNC Jack	Shielded	RG-179	BNC to HD-BNC	Male	Female	Free Hanging (In-Line)	Copper	75 Ohms	Free Hanging (In-Line)	HD-BNC Plug	78.7 in	2 m	6.6 ft	3 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 100.66
		25	$ 98.70
		50	$ 96.74
		100	$ 94.78
		250	$ 92.81

Description

General part information

Q-0500W0 Series

Cable Assembly Coaxial BNC to HD-BNC RG-179 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
