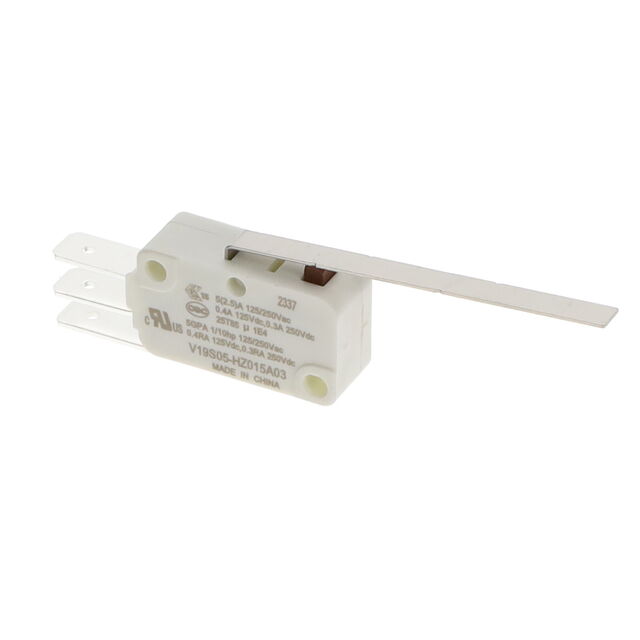

V19S05-HZ015A03

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Pretravel	Pretravel	Differential Travel	Differential Travel	Mounting Type	Actuator Type	Voltage Rating - AC	Overtravel	Overtravel	Mechanical Life	Voltage Rating - DC	Operating Force	Ingress Protection	Circuit	Electrical Life	Termination Style	Switch Function	Release Force	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Position	Operating Position
Honeywell Sensing and Productivity Solutions V19S05-HZ015A03	0.354 in	9 mm	3.8 mm	0.15 in	Chassis Mount	Lever Straight	125 V	2 mm	0.079 in	1000000 Cycles	125 VDC	5 gf	IP40	SPDT	10000 Cycles	Quick Connect - 0.250" (6.3mm)	On-Mom	2 gf	5 A 400 mA	-25 °C	85 °C	15.2 mm	0.598 in
Honeywell Sensing and Productivity Solutions V19S05-V3Z015	0.047 in	1.2 mm	0.4 mm	0.016 "	Chassis Mount	Round (Pin Plunger)	125 V	1 mm	0.039 in	1000000 Cycles	125 VDC	15 gf	IP40	SPDT	10000 Cycles	PC Pin	On-Mom	4 gf	5 A 400 mA	-25 °C	85 °C	14.7 mm	0.579 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2.10

General part information

Switch SPDT Chassis Mount
