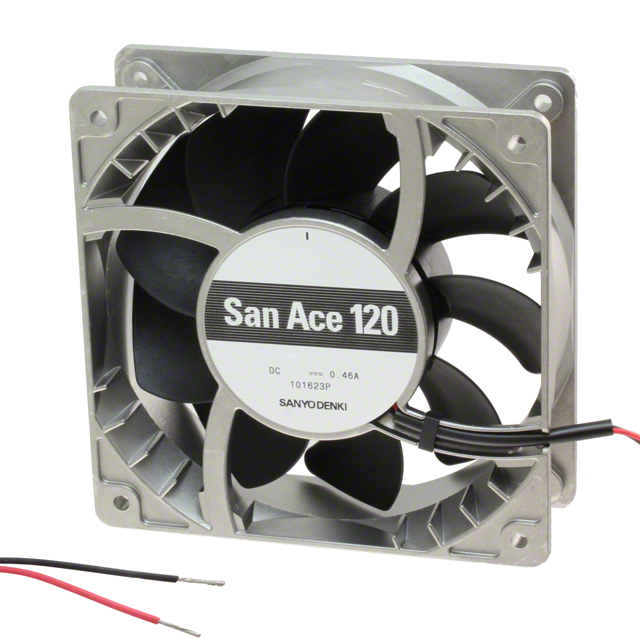

9SG1212G102

Obsolete

Sanyo Denki America Inc.

FAN AXIAL 119X38MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

Sanyo Denki America Inc.

FAN AXIAL 119X38MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Bearing Type	Lifetime @ Temp.	Approval Agency	Voltage Range [Min]	Voltage Range [Max]	RPM	Voltage - Rated	Weight	Weight	Material - Blade	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Noise	Width [y]	Fan Type	Termination	Static Pressure	Static Pressure	Material - Frame	Air Flow	Air Flow	Features
Sanyo Denki America Inc. 9SG1212G102	Ball	40000 Hrs	CSA TUV UL	10.2 VDC	13.8 VDC	6000 RPM	12 VDC	0.882 lb	400.07 g	Plastic	48 W	119 mm	119 mm	-20 °C	70 °C	-20 C	70 °C	4 A	64 dB(A)	38 mm	Tubeaxial	2 Wire Leads	341.2 Pa	1.37 in H2O	Plastic	260 CFM	7.28 mł/min
Sanyo Denki America Inc. 9SG1212G1D01	Ball	40000 Hrs	CSA TUV UL	10.2 VDC	13.8 VDC	6000 RPM	12 VDC	0.882 lb	400.07 g	Plastic	48 W	120 mm	120 mm	-20 °C	70 °C	-20 C	70 °C	4 A	64 dB(A)	38 mm	Tubeaxial	3 Wire Leads	341.2 Pa	1.37 in H2O	Aluminum	260 CFM	7.28 mł/min	Locked Rotor Sensor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 12VDC Square - 119mm L x 119mm H Ball 260.0 CFM (7.28m³/min) 2 Wire Leads

Technical documentation and resources
