0010977106

Active

Molex

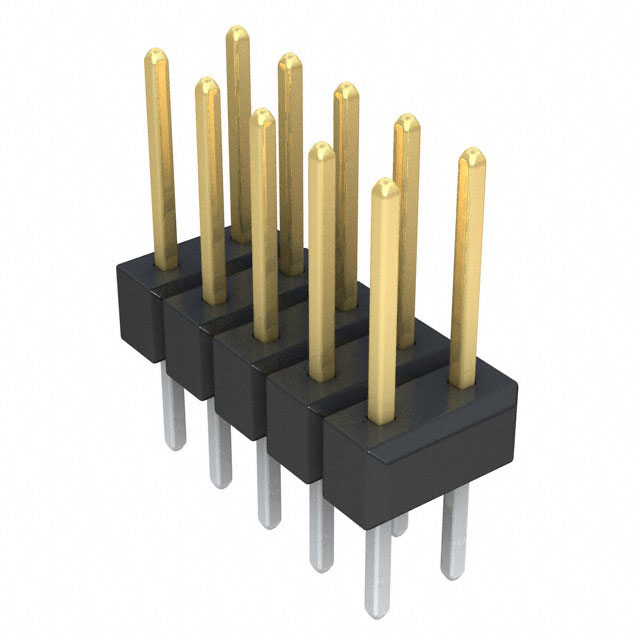

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC-GRID 70280,87 Prod Spec

0010977106

Active

Molex

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

DocumentsC-GRID 70280,87 Prod Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0010977106

Applications	General Purpose, Medical, Lighting, Automotive, Telecommunications
Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	74.8 Áin
Contact Finish Thickness - Post	1.9 Ám
Contact Length - Mating	8.13 mm
Contact Length - Mating	0.32 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.09 in
Insulation Height	2.29 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Overall Contact Length	13.21 mm
Overall Contact Length	0.52 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

001097 Series

Part	Applications	Style	Termination	Connector Type	Insulation Height	Insulation Height	Contact Shape	Number of Positions Loaded	Mounting Type	Contact Material	Material Flammability Rating	Shrouding	Contact Length - Post [x]	Contact Length - Post	Number of Rows	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Positions
Molex 0010977046	Automotive General Purpose Lighting Medical Telecommunications	Board to Board Cable	Solder	Breakaway Header	0.09 in	2.29 mm	Square	All	Through Hole	Copper Alloy	UL94 V-0	Unshrouded	0.11 in	2.79 mm	2	13.21 mm	0.52 in	8.13 mm	0.32 in	Tin	Black	74.8 Áin	1.9 Ám	Gold	2.54 mm	0.1 in	Male Pin	0.1 in	2.54 mm	15 µin	0.38 µm	Push-Pull	4
Molex 0010977106	Automotive General Purpose Lighting Medical Telecommunications	Board to Board Cable	Solder	Breakaway Header	0.09 in	2.29 mm	Square	All	Through Hole	Copper Alloy	UL94 V-0	Unshrouded	0.11 in	2.79 mm	2	13.21 mm	0.52 in	8.13 mm	0.32 in	Tin	Black	74.8 Áin	1.9 Ám	Gold	2.54 mm	0.1 in	Male Pin	0.1 in	2.54 mm	15 µin	0.38 µm	Push-Pull	10
Molex 0010977345	Automotive General Purpose Lighting Medical Telecommunications	Board to Board Cable	Solder	Breakaway Header	0.09 in	2.29 mm	Square	All	Through Hole	Copper Alloy	UL94 V-0	Unshrouded	0.11 in	2.79 mm	2	13.21 mm	0.52 in	8.13 mm	0.32 in	Tin	Black				2.54 mm	0.1 in	Male Pin	0.1 in	2.54 mm	150 Áin	3.81 Ám	Push-Pull	34
Molex 0010977366	Automotive General Purpose Lighting Medical Telecommunications	Board to Board Cable	Solder	Breakaway Header	0.09 in	2.29 mm	Square	All	Through Hole	Copper Alloy	UL94 V-0	Unshrouded	0.11 in	2.79 mm	2	13.21 mm	0.52 in	8.13 mm	0.32 in	Tin	Black	74.8 Áin	1.9 Ám	Gold	2.54 mm	0.1 in	Male Pin	0.1 in	2.54 mm	15 µin	0.38 µm	Push-Pull	36
Molex 0010977405	Automotive General Purpose Lighting Medical Telecommunications	Board to Board Cable	Solder	Breakaway Header	0.09 in	2.29 mm	Square	All	Through Hole	Copper Alloy	UL94 V-0	Unshrouded	0.11 in	2.79 mm	2	13.21 mm	0.52 in	8.13 mm	0.32 in	Tin	Black				2.54 mm	0.1 in	Male Pin	0.1 in	2.54 mm	150 Áin	3.81 Ám	Push-Pull	40
Molex 0010970103
Molex 0010977226	Automotive General Purpose Lighting Medical Telecommunications	Board to Board Cable	Solder	Breakaway Header	0.09 in	2.29 mm	Square	All	Through Hole	Copper Alloy	UL94 V-0	Unshrouded	0.11 in	2.79 mm	2	13.21 mm	0.52 in	8.13 mm	0.32 in	Tin	Black	74.8 Áin	1.9 Ám	Gold	2.54 mm	0.1 in	Male Pin	0.1 in	2.54 mm	15 µin	0.38 µm	Push-Pull	22 positions
Molex 0010977426	Automotive General Purpose Lighting Medical Telecommunications	Board to Board Cable	Solder	Breakaway Header	0.09 in	2.29 mm	Square	All	Through Hole	Copper Alloy	UL94 V-0	Unshrouded	0.11 in	2.79 mm	2	13.21 mm	0.52 in	8.13 mm	0.32 in	Tin	Black	74.8 Áin	1.9 Ám	Gold	2.54 mm	0.1 in	Male Pin	0.1 in	2.54 mm	15 µin	0.38 µm	Push-Pull	42

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.15
		10	$ 1.83
		100	$ 1.51
		2000	$ 1.16
		6000	$ 1.06

Description

General part information

001097 Series

Connector Header Through Hole 10 position 0.100" (2.54mm)

Documents

Technical documentation and resources

C-GRID 70280,87 Prod Spec

Datasheet
