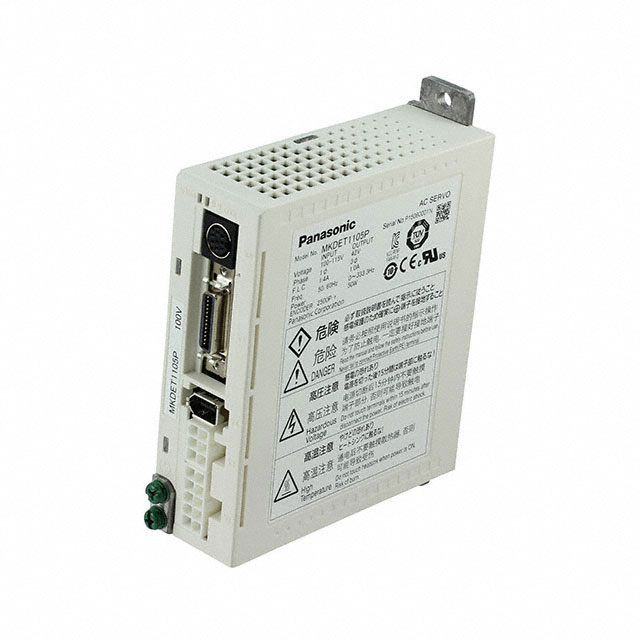

MKDET1105P

LTB

Panasonic Industrial Automation Sales

SERVO DRIVER 10A 120V LOAD

Search across all available documentation for this part.

LTB

Panasonic Industrial Automation Sales

SERVO DRIVER 10A 120V LOAD

Technical Specifications

Parameters and characteristics for this part

Specification	MKDET1105P

Control / Drive Type	Servo AC
Current - Output	10 A
For Use With/Related Products	MINAS E Series
Interface	RS-232C
Motor Type	Servo
Mounting Type	Chassis Mount
Type	Module
Voltage - Load	120 V
Voltage - Supply [Max]	120 VAC
Voltage - Supply [Min]	100 VAC
Wattage - Load	50 W
Weight	0.772 lb
Weight	350.17 g

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Wattage - Load	Current - Output	Voltage - Load	Interface	Motor Type	Control / Drive Type	Type	Weight	Weight	Mounting Type	For Use With/Related Products
Panasonic Industrial Automation Sales MKDET1505P	200 VAC	240 VAC	100 W	10 A	240 V	RS-232C	Servo	Servo AC	Module	0.772 lb	350.17 g	Chassis Mount	MINAS E Series
Panasonic Industrial Automation Sales MKDET1105P	100 VAC	120 VAC	50 W	10 A	120 V	RS-232C	Servo	Servo AC	Module	0.772 lb	350.17 g	Chassis Mount	MINAS E Series
Panasonic Industrial Automation Sales MKDET1110P	100 VAC	120 VAC	100 W	10 A	120 V	RS-232C	Servo	Servo AC	Module	0.772 lb	350.17 g	Chassis Mount	MINAS E Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Servo AC 100 ~ 120VAC Supply 10A 120V Load
