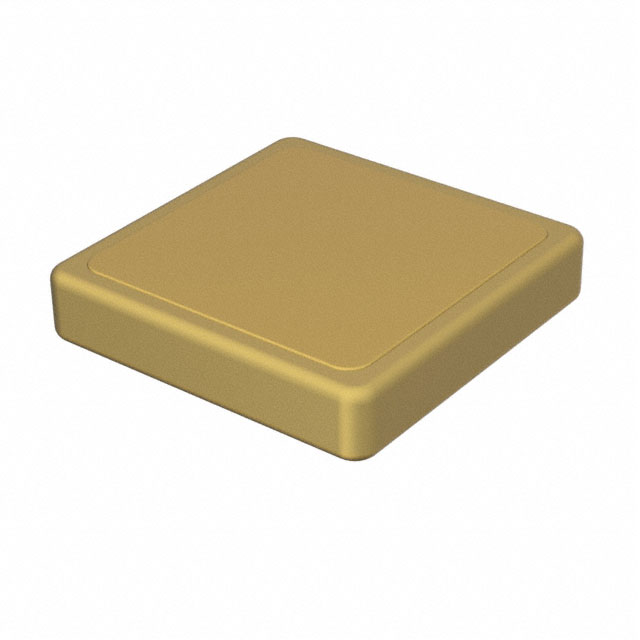

D30BJ101M1BX

Active

Knowles Johanson Manufacturing

CAP CER 100PF 100V BJ SMD

Search across all available documentation for this part.

Active

Knowles Johanson Manufacturing

CAP CER 100PF 100V BJ SMD

Technical Specifications

Parameters and characteristics for this part

Specification	D30BJ101M1BX

Applications	RF, High Frequency, Bypass, Microwave, Decoupling
Capacitance	100 pF
Features	Bonding Mountable, Single Layer
Mounting Type	Surface Mount, SLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard SMD
Size / Dimension [x]	0.76 mm
Size / Dimension [x]	0.03 "
Size / Dimension [y]	0.76 mm
Size / Dimension [y]	0.03 "
Temperature Coefficient	BJ
Thickness (Max) [Max]	0.22 mm
Thickness (Max) [Max]	0.009 in
Tolerance	20 %
Voltage - Rated	100 V

Part	Tolerance	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Applications	Capacitance	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Thickness (Max) [Max]	Thickness (Max) [Max]	Temperature Coefficient	Package / Case
Knowles Johanson Manufacturing D30BJ101M1BX	20 %	Surface Mount SLCC	0.76 mm	0.76 mm	0.03 "	0.03 "	Bypass Decoupling High Frequency Microwave RF	100 pF	Bonding Mountable Single Layer	-55 °C	125 °C	100 V	0.22 mm	0.009 in	BJ	Nonstandard SMD

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 pF ±20% 100V Ceramic Capacitor BJ Nonstandard SMD
