5905-9503-000

Active

Radiall USA, Inc.

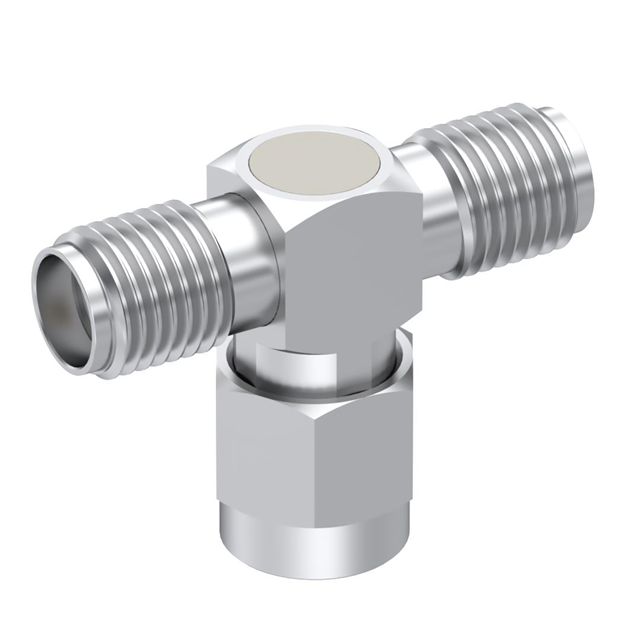

COAX ADAPT SMA TO SMA, DUAL

Search across all available documentation for this part.

Active

Radiall USA, Inc.

COAX ADAPT SMA TO SMA, DUAL

Technical Specifications

Parameters and characteristics for this part

Specification	5905-9503-000

Adapter Series	SMA to SMA, Dual
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket (2)
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	T-Shape

Part	Style	Frequency - Max [Max]	Center Contact Material	Body Material	Dielectric Material	Impedance	Center Contact Plating	Adapter Type	Mating Cycles	Adapter Series	Convert From (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Convert To (Adapter End)	Conversion Type
Radiall USA, Inc. 5905-9503-000	T-Shape	18 GHz	Beryllium Copper	Stainless Steel	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	Plug to Jack	500	SMA to SMA Dual	SMA Plug Male Pin	-65 ░C	165 °C	Free Hanging (In-Line)	Female Socket (2) SMA Jack	Same Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 106.40

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To SMA Jack, Female Socket (2) 50 Ohms
