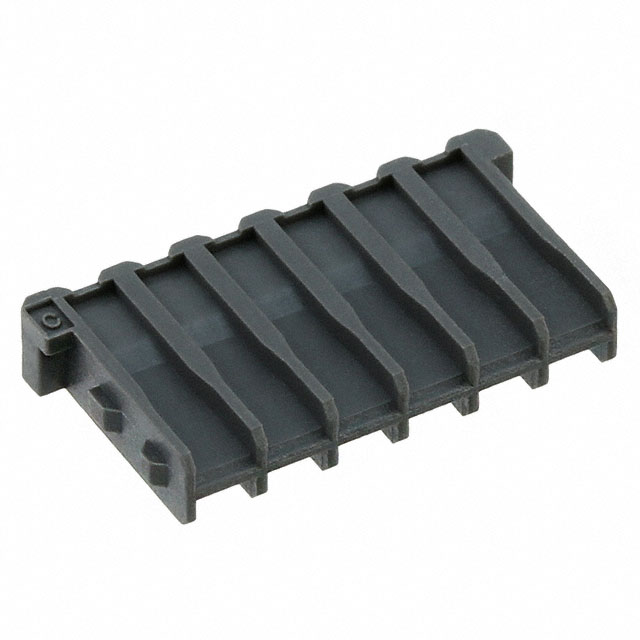

GT25-12DS-R

Active

Hirose Electric USA, Inc.

CONN RETAINER

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN RETAINER

Technical Specifications

Parameters and characteristics for this part

Specification	GT25-12DS-R

Accessory Type	Retainer
For Use With/Related Products	GT25 Series
Number of Positions	12

Part	For Use With/Related Products	Accessory Type	Number of Positions	Fastening Type	Contact Finish - Post	Number of Rows	Insulation Material	Features	Contact Shape	Contact Material	Contact Type	Pitch - Mating	Pitch - Mating	Insulation Color	Connector Type	Style	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Number of Positions Loaded	Voltage Rating	Current Rating (Amps)	Termination	Mounting Type	Insulation Height	Insulation Height	Pitch [x]	Pitch [x]	Contact Termination	Color
Hirose Electric USA, Inc. GT25-24DS-R	GT25 Series	Retainer	24
Hirose Electric USA, Inc. GT25-32DS-R	GT25 Series	Retainer
Hirose Electric USA, Inc. GT25-12DP-2.2H(55)			12	Push-Pull	Tin	2	Nylon Polyamide (PA)	Solder Retention	Square	Brass	Male Pin	0.087 in	2.2 mm	Gray	Header	Board to Cable/Wire	-40 °C	105 ░C	Shrouded - 4 Wall	All	250 VAC	3 A	Solder	Surface Mount Right Angle	13 mm	0.512 in
Hirose Electric USA, Inc. GT25-8DS-HU/R			8	Latch Lock		2	Polyphenylene Ether (PPE)				Male Pin				Plug		-40 °C	105 ░C						Free Hanging (In-Line)			0.087 in	2.2 mm	Crimp	Black
Hirose Electric USA, Inc. GT25-32DP-2.2H(01)
Hirose Electric USA, Inc. GT25-24DP-2.2H(A)
Hirose Electric USA, Inc. GT25-24DP-2.2V(56)			24	Push-Pull	Tin	2	Nylon Polyamide (PA)	Solder Retention	Square	Brass	Male Pin	0.087 in	2.2 mm	Gray	Header	Board to Cable/Wire	-40 °C	105 ░C	Shrouded - 4 Wall	All	250 VAC	3 A	Solder	Surface Mount	18.8 mm	0.74 in
Hirose Electric USA, Inc. GT25-24DP-2.2V(A)(30)
Hirose Electric USA, Inc. GT25-28DP-2.2H(01)
Hirose Electric USA, Inc. GT25-12DS-R	GT25 Series	Retainer	12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Retainer For GT25 Series
