FWG.0B.305.CLA

Active

LEMO

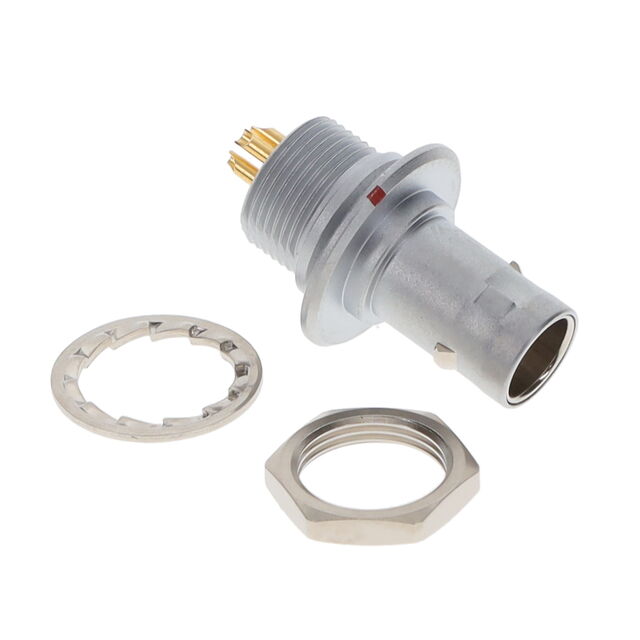

CONN PLUG MALE 5P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG MALE 5P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	FWG.0B.305.CLA

Backshell Material, Plating	Brass, Chrome
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Current Rating (Amps)	6.5 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	305
Shielding	Shielded

Part	Connector Type	Primary Material	Fastening Type	Insert Material	Backshell Material, Plating	Ingress Protection	Shell Size - Insert	Orientation	Contact Finish - Mating	Current Rating (Amps)	Shielding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Contact Material	Mounting Feature	Shell Finish	Material Flammability Rating	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Termination
LEMO FWG.0B.305.CLA	Male Pins Plug	Metal	Push-Pull	Polyetheretherketone (PEEK)	Brass Chrome	IP50	305	G	Gold	6.5 A	Shielded	1 µm	39.4 µin	Silver	Brass	Bulkhead - Rear Side Nut	Chrome	UL94 V-0	Brass	-55 °C	250 °C
LEMO FWG.0B.309.CLA	Male Pins Plug	Metal	Push-Pull	Polyetheretherketone (PEEK)	Brass Chrome	IP50	309	G	Gold	2 A	Shielded	1 µm	39.4 µin	Silver	Brass	Bulkhead - Rear Side Nut	Chrome	UL94 V-0	Brass	-55 °C	250 °C	9
LEMO FWG.0B.304.CYC	Male Pins Plug	Metal	Push-Pull	Polyetheretherketone (PEEK)	Brass Chrome	IP50	304	G	Gold	7 A	Shielded	1 µm	39.4 µin	Silver	Brass	Bulkhead - Rear Side Nut	Chrome	UL94 V-0	Brass	-55 °C	250 °C	4	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Male Pins Solder Cup
