HUMI-EN-XR-S-N

Active

AMPHENOL ADVANCED SENSORS

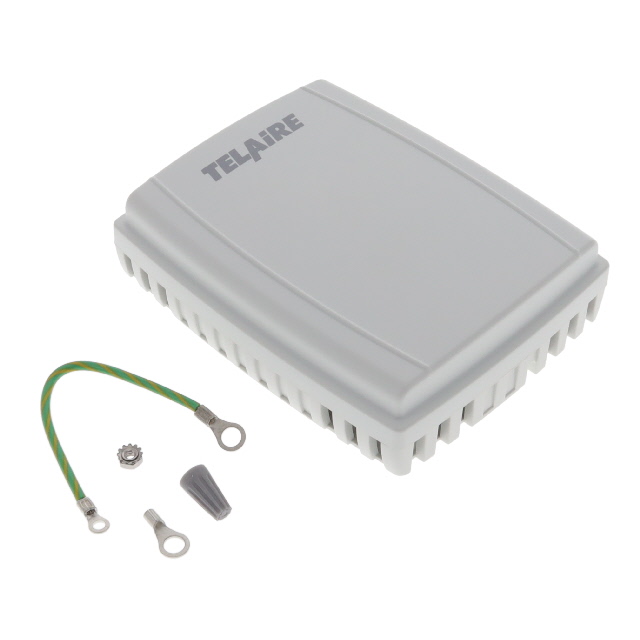

HUMITRAC - ENTHALPY TRANSMITTER

Search across all available documentation for this part.

Active

AMPHENOL ADVANCED SENSORS

HUMITRAC - ENTHALPY TRANSMITTER

Technical Specifications

Parameters and characteristics for this part

Specification	HUMI-EN-XR-S-N

Accuracy	2.5 % RH
Humidity Range [Max]	99 % RH
Humidity Range [Min]	0 % RH
Mounting Type	Chassis Mount
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Output Type	Analog Current, Analog Voltage
Package / Case	Module
Sensor Type	Temperature, Humidity
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	12 V

Part	Humidity Range [Min]	Humidity Range [Max]	Package / Case	Accuracy	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensor Type	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Mounting Type
AMPHENOL ADVANCED SENSORS HUMI-EN-XR-S-N	0 % RH	99 % RH	Module	2.5 % RH	12 V	30 VDC	Humidity Temperature	-40 °C	60 °C	Analog Current Analog Voltage	Chassis Mount
AMPHENOL ADVANCED SENSORS HUMI-EN-XR-O-N	0 % RH	99 % RH	Module	2.5 % RH	12 V	30 VDC	Humidity Temperature	-40 °C	60 °C	Analog Current Analog Voltage	Chassis Mount
AMPHENOL ADVANCED SENSORS HUMI-EN-XR-D-N	0 % RH	99 % RH	Module	2.5 % RH	12 V	30 VDC	Humidity Temperature	-40 °C	60 °C	Analog Current Analog Voltage	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 515.06

General part information

Humidity, Temperature 0 ~ 99% RH Analog Current, Analog Voltage ±2.5% RH Chassis Mount
