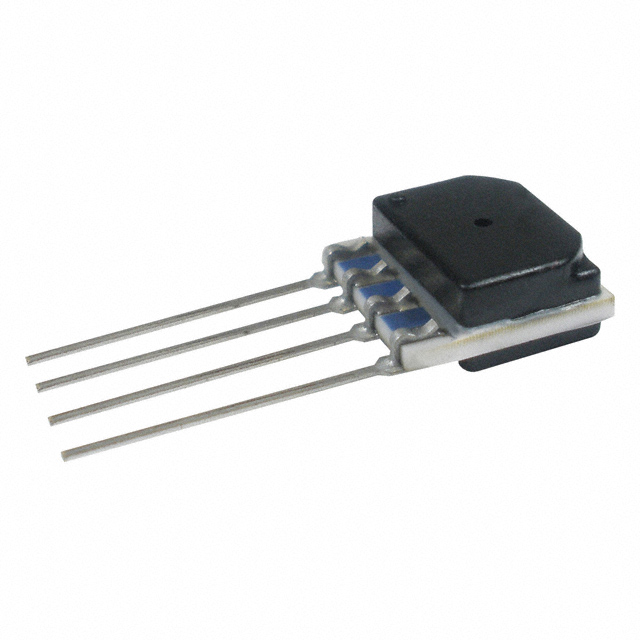

SSCSNNN060PA2A3

Active

Honeywell Sensing and Productivity Solutions

SENSOR 60PSIA 12BIT 4SIP

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 60PSIA 12BIT 4SIP

Technical Specifications

Parameters and characteristics for this part

Specification	SSCSNNN060PA2A3

Accuracy	0.25 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	120 PSI
Maximum Pressure [Max]	827.37 kPa
Mounting Type	Through Hole
Operating Pressure	60 PSI
Operating Pressure	413.69 kPa
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	12 b
Output Type	I2C
Package / Case	4-SIP Module
Port Style	No Port
Supplier Device Package	4-SIP
Termination Style	PC Pin
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

Part	Features	Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Mounting Type	Port Style	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Maximum Pressure [Max]	Maximum Pressure [Max]	Accuracy	Termination Style	Package / Case	Supplier Device Package	Operating Pressure	Operating Pressure
Honeywell Sensing and Productivity Solutions SSCSNNN060PA2A3	Amplified Output Temperature Compensated	12 b	3.6 V	3 V	Board Mount	Through Hole	No Port	I2C	85 °C	-40 °C	120 PSI	827.37 kPa	0.25 %	PC Pin	4-SIP Module	4-SIP	60 PSI	413.69 kPa
