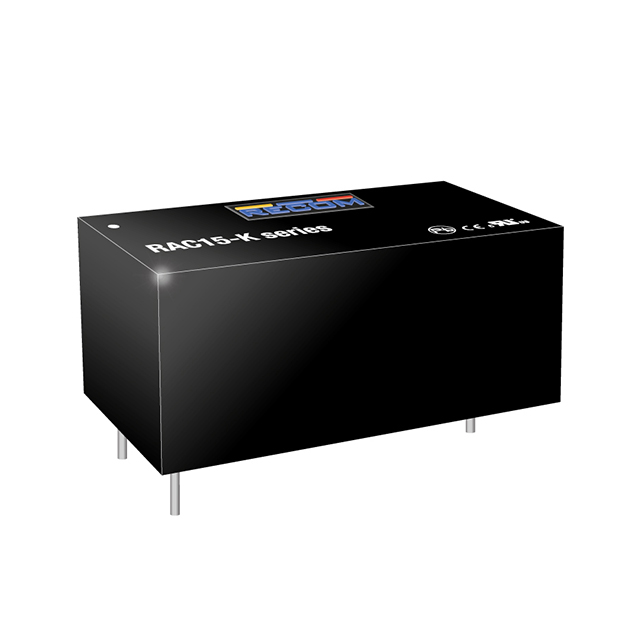

RAC15-05SK

Active

RECOM Power

AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE & HOUSEHOLD, 1 OUTPUT, 15 W, 5 V, 3 A

Search across all available documentation for this part.

Active

RECOM Power

AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE & HOUSEHOLD, 1 OUTPUT, 15 W, 5 V, 3 A

Technical Specifications

Parameters and characteristics for this part

Specification	RAC15-05SK

Applications	Household Appliances, ITE (Commercial)
Approval Agency	CE, cURus
Current - Output (Max) [Max]	3 A
Efficiency	84 %
Features	Universal Input, IP20
Line Regulation	1 %
Load Regulation	1 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	4 Lead
Package / Case	5-DIP Module
Power (Watts)	15 W
Size / Dimension [x]	2.07 "
Size / Dimension [x]	52.5 mm
Size / Dimension [y]	27.4 mm
Size / Dimension [y]	1.08 in
Size / Dimension [z]	23 mm
Size / Dimension [z]	0.91 in
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Output 1	5 V
Weight	0.132 lb
Weight	59.87 g

AC/DC Power Modules 15W 85-264Vin 24Vout 630mA

Part	Voltage - Output 1	Line Regulation	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input [Min]	Voltage - Input [Max]	Load Regulation	Mounting Type	Package / Case	Package / Case	Power (Watts)	Weight	Weight	Type	Features	Applications	Approval Agency	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Number of Outputs
RECOM Power RAC15-05SK	5 V	1 %	2.07 "	27.4 mm	23 mm	52.5 mm	0.91 in	1.08 in	85 VAC 120 VDC	264 VAC 370 VDC	1 %	Through Hole	4 Lead	5-DIP Module	15 W	0.132 lb	59.87 g	Enclosed	IP20 Universal Input	Household Appliances ITE (Commercial)	CE cURus	84 %	85 °C	-40 °C	3 A	1
RECOM Power RAC15-12SK	12 V	1 %	2.07 "	27.4 mm	23 mm	52.5 mm	0.91 in	1.08 in	85 VAC 120 VDC	264 VAC 370 VDC	1 %	Through Hole	4 Lead	5-DIP Module	15 W			Enclosed	IP20 Universal Input	Household Appliances ITE (Commercial)	CE cURus	86 %	85 °C	-40 °C	1.67 A	1
RECOM Power RAC15-15SK	15 V	1 %	2.07 "	27.4 mm	23 mm	52.5 mm	0.91 in	1.08 in	85 VAC 120 VDC	264 VAC 370 VDC	1 %	Through Hole	4 Lead	5-DIP Module	15 W			Enclosed	IP20 Universal Input	Household Appliances ITE (Commercial)	CE cURus	86 %	85 °C	-40 °C	1 A	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC Power Modules 15W 85-264Vin 24Vout 630mA
