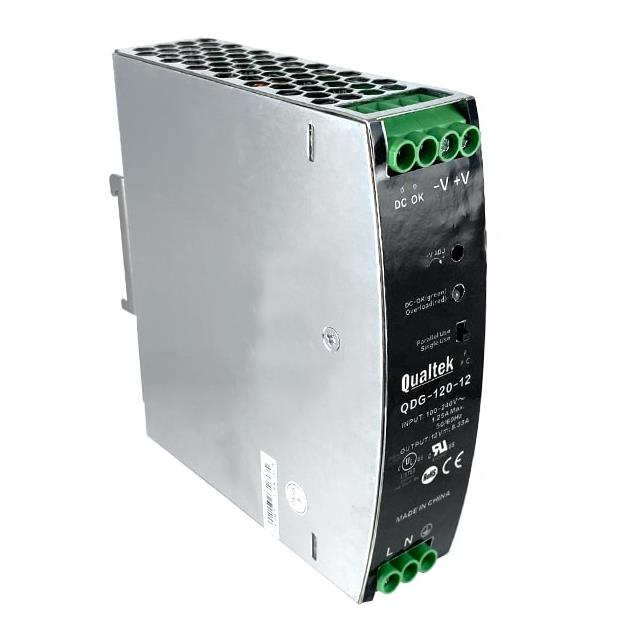

QDG-120-12

Active

Qualtek

AC/DC DIN RAIL SUPPLY 12V 120W

Search across all available documentation for this part.

Active

Qualtek

AC/DC DIN RAIL SUPPLY 12V 120W

Technical Specifications

Parameters and characteristics for this part

Specification	QDG-120-12

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial), Hazardous Locations
Approval Agency	CE, cURus, cULus
Current - Output (Max) [Max]	10 A
Features	Adjustable Output, Load Sharing, Universal Input, PFC
Input Type	AC
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Size / Dimension [x]	4.69 "
Size / Dimension [x]	119 mm
Size / Dimension [y]	32 mm
Size / Dimension [y]	1.26 in
Size / Dimension [z]	4.88 "
Size / Dimension [z]	124 mm
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Minimum Load Required	Number of Outputs	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Applications	Approval Agency	Features	Voltage - Isolation	Voltage - Output 1	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
Qualtek QDG-120-12	AC	-25 °C	70 °C		1	85 VAC	264 VAC	Hazardous Locations ITE (Commercial)	CE cULus cURus	Adjustable Output Load Sharing PFC Universal Input	3000 V	12 V	10 A	32 mm	4.88 "	124 mm	1.26 in	4.69 "	119 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

AC/DC DIN RAIL SUPPLY 12V 120W
