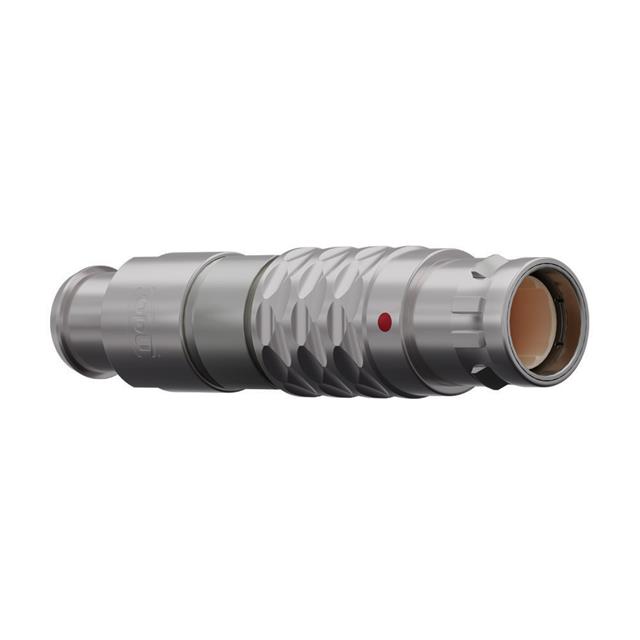

SB3LAC-P16PFH2-020S

Active

ODU

STRAIGHT PLUG, STY SB, SER L, SZ

Search across all available documentation for this part.

Active

ODU

STRAIGHT PLUG, STY SB, SER L, SZ

Technical Specifications

Parameters and characteristics for this part

Specification	SB3LAC-P16PFH2-020S

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Cable Opening [Max] [custom]	0.402 in
Cable Opening [Max] [custom]	10.2 mm
Cable Opening [Min] [custom]	0.354 in
Cable Opening [Min] [custom]	9 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Features	Medical (IEC 60601 (2 MOOP/2 MOPP))
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	16
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	3
Shielding	Shielded
Termination	Crimp
Voltage Rating	48 VDC

Part	Ingress Protection	Termination	Voltage Rating	Contact Material	Connector Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Orientation	Insert Material	Shell Size - Insert	Current Rating (Amps)	Fastening Type	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Color	Applications	Shielding	Shell Material	Number of Positions	Mounting Type	Contact Finish - Mating	Primary Material	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
ODU SB3LAC-P16PFH2-020S	IP50	Crimp	48 VDC	Brass	Male Pins Plug	Medical (IEC 60601 (2 MOOP/2 MOPP))	-40 °C	120 °C	Chrome over Nickel	A	Polyetheretherketone (PEEK)	3	10 A	Push-Pull	0.402 in	0.354 in	9 mm	10.2 mm	Silver	Industrial Medical Military Testing Equipment & Measurement	Shielded	Brass	16	Free Hanging (In-Line)	Gold	Metal
ODU SB3LAC-P16PFH2-920S	IP50	Crimp	48 VDC	Brass	Male Pins Plug	Medical (IEC 60601 (2 MOOP/2 MOPP))	-40 °C	120 °C	Chrome over Nickel	A	Polyetheretherketone (PEEK)	3	10 A	Push-Pull					Silver	Industrial Medical Military Testing Equipment & Measurement	Shielded	Brass	16	Free Hanging (In-Line)	Gold	Metal	0.362 in	0.315 in	8 mm	9.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 141.12

General part information

16 Position Circular Connector Plug, Male Pins Crimp
