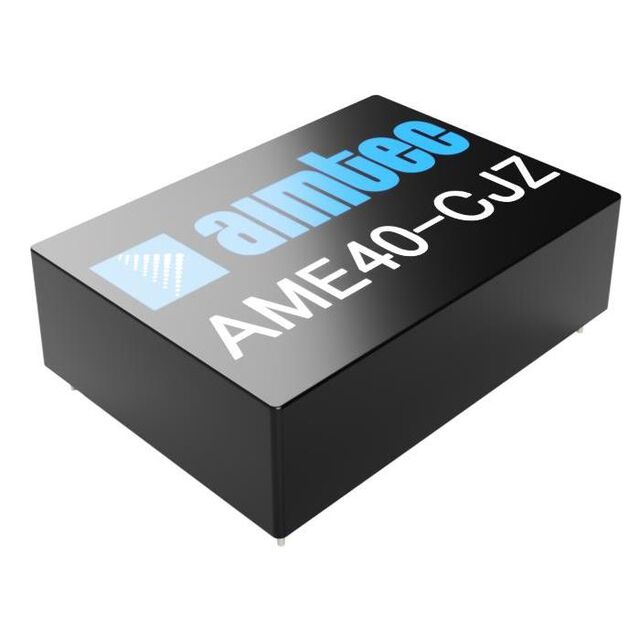

AME40-5DCJZ

Active

aimtec

DC/DC CONVERTER +/-5V 40W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AME40-5DCJZ

Active

aimtec

DC/DC CONVERTER +/-5V 40W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AME40-5DCJZ

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Current - Output (Max)	4 A
Features	Universal Input
Line Regulation	0.5 %
Load Regulation	1 %
Mounting Type	Through Hole
Number of Outputs	2
Package / Case	7-DIP Module, 5 Leads
Power (Watts)	40 W
Size / Dimension [x]	3.5 in
Size / Dimension [x]	89 mm
Size / Dimension [y]	63.5 mm
Size / Dimension [y]	2.5 in
Size / Dimension [z]	25 mm
Size / Dimension [z]	0.98 in
Type	Enclosed
Voltage - Input [Max]	264 VAC, 370 VDC
Voltage - Input [Min]	100 V, 85 VAC
Voltage - Output 1	5 V

AME40 Series

Part	Load Regulation	Applications	Mounting Type	Number of Outputs	Weight	Weight	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Power (Watts)	Package / Case	Current - Output (Max) [Max]	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 1	Line Regulation	Package / Case	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Standard Number	Current - Output 1	Voltage - Isolation
aimtec AME40-48SVZ	1 %	ITE (Commercial)	Through Hole	1	0.474 lb	215 g	Enclosed	25 mm	3.5 in	63.5 mm	0.98 in	89 mm	2.5 in	Universal Input	40 W	7-DIP Module 5 Leads	830 mA	84 %	264 VAC 370 VDC	85 VAC 100 V	48 V	0.5 %
aimtec AME40-15SMAZ	3 %	ITE (Commercial) Medical	Through Hole	1	0.661 lb	300 g	Enclosed	30 mm	3.56 "	63 mm	1.18 in	90.5 mm	2.48 in	Universal Input	40 W	5-DIP Module	2.66 A	84 %	264 VAC 370 VDC	90 VAC 130 VDC	15 V	2 %	4 Lead	CB CE cULus cURus	85 °C	-40 °C
aimtec AME40-5DCJZ	1 %	ITE (Commercial)	Through Hole	2			Enclosed	25 mm	3.5 in	63.5 mm	0.98 in	89 mm	2.5 in	Universal Input	40 W	7-DIP Module 5 Leads			264 VAC 370 VDC	85 VAC 100 V	5 V	0.5 %		CE cURus			4 A
aimtec AME40-24S277VZ	1 %	ITE (Commercial)	Through Hole	1	0.474 lb	215 g	Enclosed	25 mm	3.5 in	63.5 mm	0.98 in	89 mm	2.5 in		40 W	7-DIP Module	1.67 A	84 %	305 VAC 430 VDC	85 VAC 100 V	24 V	0.5 %						62368-1
aimtec AME40-12S277VZ	1 %	ITE (Commercial)	Through Hole	1	0.474 lb	215 g	Enclosed	25 mm	3.5 in	63.5 mm	0.98 in	89 mm	2.5 in		40 W	7-DIP Module	3.33 A	84 %	305 VAC 430 VDC	85 VAC 100 V	12 V	0.5 %						62368-1
aimtec AME40-3.3SVZ	1 %	ITE (Commercial)	Through Hole	1	0.474 lb	215 g	Enclosed	25 mm	3.5 in	63.5 mm	0.98 in	89 mm	2.5 in	Universal Input	26 W	7-DIP Module 5 Leads	8 A	78 %	264 VAC 370 VDC	85 VAC 100 V	3.3 V	0.5 %
aimtec AME40-15SVZ-ST		ITE (Commercial)	Chassis Mount	1			Enclosed	33.5 mm	5.32 in	70 mm	1.32 in	135 mm	2.76 in	Universal Input	40 W			84 %	264 VAC 370 VDC	85 VAC 100 V	15 V				70 °C	-40 °C			2.66 A	4000 V
aimtec AME40-15S277VZ	1 %	ITE (Commercial)	Through Hole	1	0.474 lb	215 g	Enclosed	25 mm	3.5 in	63.5 mm	0.98 in	89 mm	2.5 in		40 W	7-DIP Module	2.66 A	84 %	305 VAC 430 VDC	85 VAC 100 V	15 V	0.5 %						62368-1
aimtec AME40-3S277VZ	1 %	ITE (Commercial)	Through Hole	1	0.474 lb	215 g	Enclosed	25 mm	3.5 in	63.5 mm	0.98 in	89 mm	2.5 in		26 W	7-DIP Module	8 A	77 %	305 VAC 430 VDC	85 VAC 100 V	3.3 V	0.5 %						62368-1
aimtec AME40-5S277VZ	1 %	ITE (Commercial)	Through Hole	1	0.474 lb	215 g	Enclosed	25 mm	3.5 in	63.5 mm	0.98 in	89 mm	2.5 in		40 W	7-DIP Module	8 A	80 %	305 VAC 430 VDC	85 VAC 100 V	5 V	0.5 %						62368-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AME40 Series

Enclosed AC DC Converters 2 Output 5V 4A, 4A 85 ~ 264 VAC, 100 ~ 370 VDC Input
