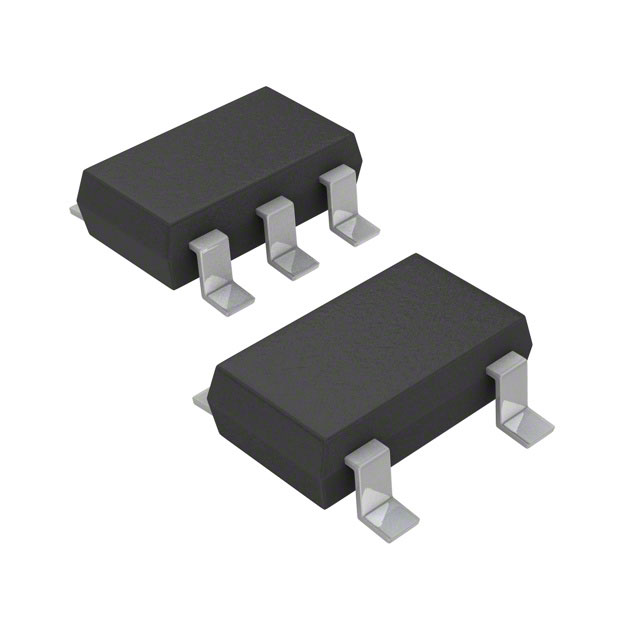

AS1323-BTTT-30
Obsoleteams-OSRAM USA INC.
IC REG BOOST 3V 1A TSOT23-5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AS1323-BTTT-30
Obsoleteams-OSRAM USA INC.
IC REG BOOST 3V 1A TSOT23-5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AS1323-BTTT-30 |
|---|---|
| Current - Output | 1 A |
| Function | Step-Up |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Synchronous Rectifier | True |
| Topology | Boost |
| Voltage - Input (Max) [Max] | 2 V |
| Voltage - Input (Min) [Min] | 0.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AS1323 Series
Boost Switching Regulator IC Positive Fixed 3V 1 Output 1A (Switch) SOT-23-5 Thin, TSOT-23-5
Documents
Technical documentation and resources
