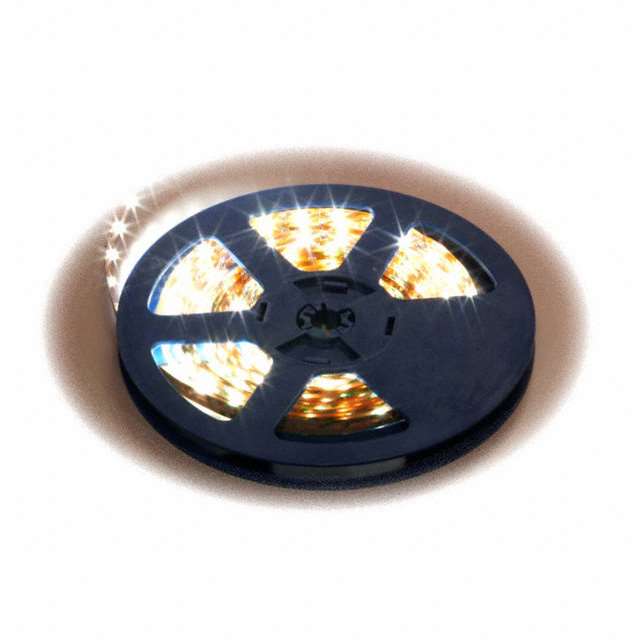

OVQ12S30W7

Obsolete

TT Electronics/Optek Technology

LED ENG CL WHT LNR STRIP 5500K

Search across all available documentation for this part.

Obsolete

TT Electronics/Optek Technology

LED ENG CL WHT LNR STRIP 5500K

Technical Specifications

Parameters and characteristics for this part

Specification	OVQ12S30W7

CCT (K)	5500 K
Color	Cool, White
Configuration	Linear Light Strip, Flexible
Current - Max [Max]	133 mA
Current - Test	133 mA
Height [z]	2.29 mm
Lens Type	Flat
Luminous Flux @ Current/Temperature	68 lm
Size / Dimension [x]	500 mm
Size / Dimension [y]	8 mm
Type	LED Engine
Viewing Angle	120 °

Part	CCT (K)	Current - Test	Viewing Angle	Configuration	Height [z]	Luminous Flux @ Current/Temperature	Size / Dimension [x]	Size / Dimension [y]	Type	Lens Type	Current - Max [Max]	Color	Wavelength
TT Electronics/Optek Technology OVQ12S30W7	5500 K	133 mA	120 °	Flexible Linear Light Strip	2.29 mm	68 lm	500 mm	8 mm	LED Engine	Flat	133 mA	Cool White
TT Electronics/Optek Technology OVQ12S30Y7		158 mA	120 °	Flexible Linear Light Strip	2.29 mm		500 mm	8 mm	LED Engine	Flat	158 mA	Yellow	590 nm
TT Electronics/Optek Technology OVQ12S30R7		158 mA	120 °	Flexible Linear Light Strip	2.29 mm		500 mm	8 mm	LED Engine	Flat	158 mA	Red	625 nm
TT Electronics/Optek Technology OVQ12S30B7		133 mA	120 °	Flexible Linear Light Strip	2.29 mm		500 mm	8 mm	LED Engine	Flat	133 mA	Blue	470 nm
TT Electronics/Optek Technology OVQ12S30G7		133 mA	120 °	Flexible Linear Light Strip	2.29 mm		500 mm	8 mm	LED Engine	Flat	133 mA	Green	525 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Engine - White, Cool Linear Light Strip, Flexible
