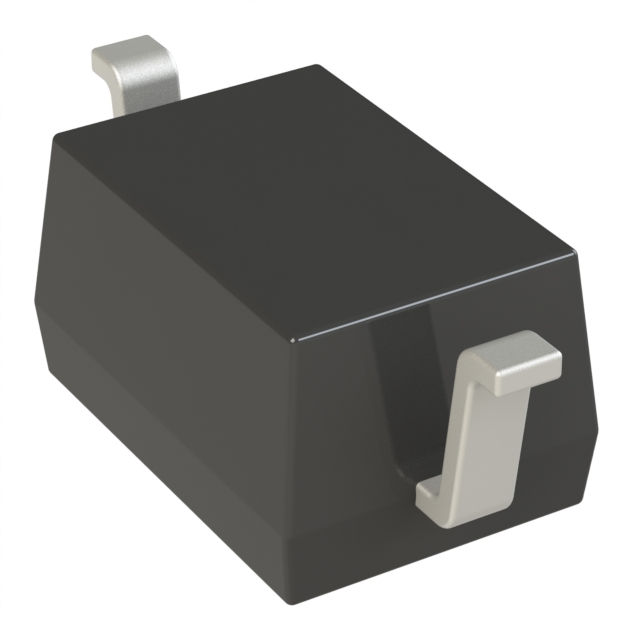

1SS357-TP

NRND

Micro Commercial Components

INTERFACE

Search across all available documentation for this part.

NRND

Micro Commercial Components

INTERFACE

Technical Specifications

Parameters and characteristics for this part

Specification	1SS357-TP

Capacitance @ Vr, F	18 pF
Current - Average Rectified (Io)	100 mA
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Surface Mount
Operating Temperature - Junction	125 °C
Package / Case	SOD-323, SC-76
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOD-323
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	45 V
Voltage - Forward (Vf) (Max) @ If	360 mV

Part	Package / Case	Technology	Operating Temperature - Junction	Capacitance @ Vr, F	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Supplier Device Package	Speed	Speed	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type
Micro Commercial Components 1SS357-TP	SC-76 SOD-323	Standard	125 °C	18 pF	360 mV	100 mA	SOD-323	Any Speed	200 mA	5 µA	45 V	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 0.04

General part information

Diode 45 V 100mA Surface Mount SOD-323
