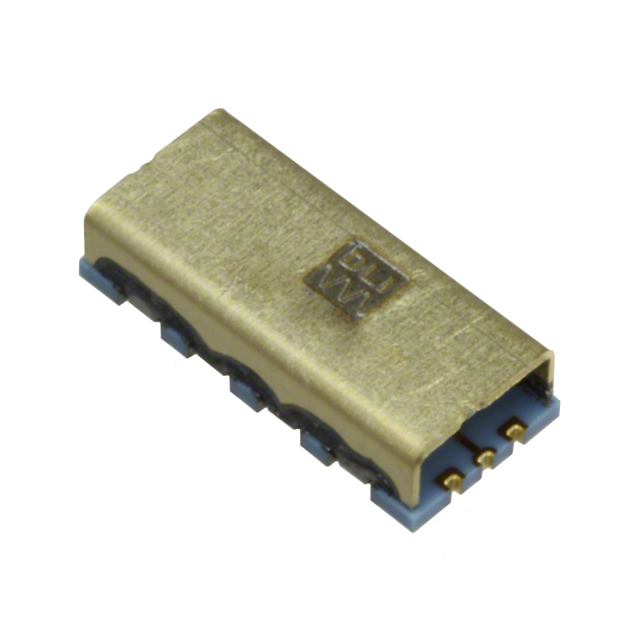

B060NC5S
ActiveKnowles Johanson Manufacturing
RF FILTER BAND PASS 6GHZ 8SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsSM Bandpass Filter Brochure
B060NC5S
ActiveKnowles Johanson Manufacturing
RF FILTER BAND PASS 6GHZ 8SMD
Deep-Dive with AI
DocumentsSM Bandpass Filter Brochure
Technical Specifications
Parameters and characteristics for this part
| Specification | B060NC5S |
|---|---|
| Bandwidth | 1 GHz |
| Filter Type | Band Pass |
| Frequency | 6 GHz |
| Height (Max) | 2.24 mm |
| Height (Max) [Max] | 0.088 in |
| Insertion Loss | 3 dB |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, No Lead |
| Size / Dimension [x] | 12.7 mm |
| Size / Dimension [x] | 0.5 in |
| Size / Dimension [y] | 0.2 " |
| Size / Dimension [y] | 5.08 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 155.76 | |
| 10 | $ 126.99 | |||
| 25 | $ 120.75 | |||
Description
General part information
B060NC Series
6GHz Frequency Band Pass RF Filter (Radio Frequency) 1GHz Bandwidth 3dB 8-SMD, No Lead
