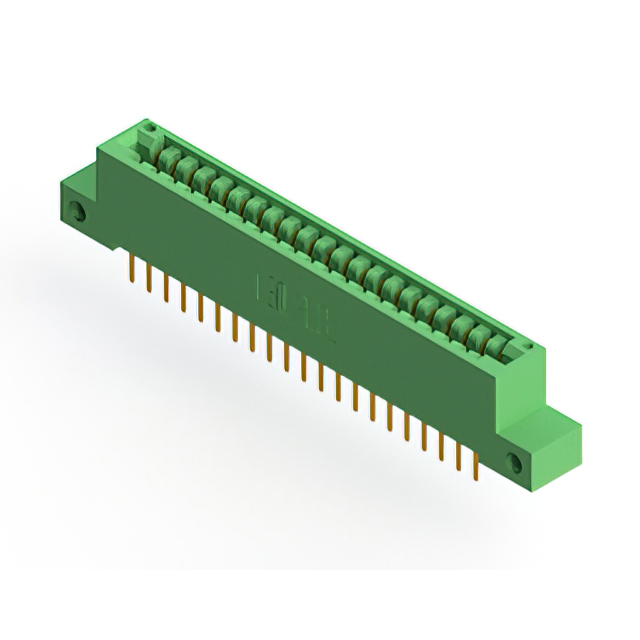

846-042-520-212
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 42POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-042-520-212
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 42POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-042-520-212 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 42 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
846-042 Series
...
| Part | Termination | Mounting Type | Number of Positions | Pitch [x] | Pitch [x] | Contact Material | Termination Rows | Material - Insulation | Number of Rows | Number of Positions/Bay/Row [custom] | Read Out | Contact Type | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Color | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature | Flange Feature | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | Through Hole Right Angle | 42 | 0.125 in | 3.18 mm | Copper Alloy | 1 | Diallyl Phthalate (DAP) | 1 | 42 | Single | Cantilever | Gold | 125 °C | -40 °C | Non Specified - Single Edge | Green | 10 Áin | 0.25 Ám | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | |||
EDAC Inc. | Wire Wrap | Through Hole | 42 | 0.125 in | 3.18 mm | Copper Alloy | 2 | Diallyl Phthalate (DAP) | 2 | Dual | Cantilever | Gold | 125 °C | -40 °C | Non Specified - Dual Edge | Green | 10 Áin | 0.25 Ám | M3 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | ||||||
EDAC Inc. | Wire Wrap | Through Hole | 42 | 0.125 in | 3.18 mm | Copper Alloy | 2 | Diallyl Phthalate (DAP) | 2 | Dual | Cantilever | Gold | 125 °C | -40 °C | Non Specified - Dual Edge | Green | 10 Áin | 0.25 Ám | Flush Mount Top Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 3.25 mm | 0.128 " | ||||
EDAC Inc. | Solder | Through Hole | 42 | 0.125 in | 3.18 mm | Copper Alloy | 1 | Diallyl Phthalate (DAP) | 1 | 42 | Single | Cantilever | Gold | 125 °C | -40 °C | Non Specified - Single Edge | Green | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | ||||||
EDAC Inc. | Solder | Through Hole Right Angle | 42 | 0.125 in | 3.18 mm | Copper Alloy | 1 | Diallyl Phthalate (DAP) | 1 | 42 | Single | Cantilever | Gold | 125 °C | -40 °C | Non Specified - Single Edge | Green | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | ||||
EDAC Inc. | Solder | Through Hole | 42 | 0.125 in | 3.18 mm | Copper Alloy | 1 | Diallyl Phthalate (DAP) | 1 | 42 | Single | Cantilever | Gold | 125 °C | -40 °C | Non Specified - Single Edge | Green | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | |||||
EDAC Inc. | Solder | Through Hole | 42 | 0.125 in | 3.18 mm | Copper Alloy | 1 | Diallyl Phthalate (DAP) | 1 | 42 | Single | Cantilever | Gold | 125 °C | -40 °C | Non Specified - Single Edge | Green | 10 Áin | 0.25 Ám | Flush Mount Top Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 3.25 mm | 0.128 " | |||
EDAC Inc. | Solder | Board Edge Straddle Mount | 42 | 0.125 in | 3.18 mm | Copper Alloy | 2 | Diallyl Phthalate (DAP) | 2 | Dual | Cantilever | Gold | 125 °C | -40 °C | Non Specified - Dual Edge | Green | 10 Áin | 0.25 Ám | Flush Mount Top Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 3.96 mm | 0.156 in | Card Extender | |||
EDAC Inc. | Solder | Through Hole | 42 | 0.125 in | 3.18 mm | Copper Alloy | 2 | Diallyl Phthalate (DAP) | 2 | Dual | Cantilever | Gold | 125 °C | -40 °C | Non Specified - Dual Edge | Green | 10 Áin | 0.25 Ám | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | ||||
EDAC Inc. | Solder | Through Hole | 42 | 0.125 in | 3.18 mm | Copper Alloy | 2 | Diallyl Phthalate (DAP) | 2 | Dual | Cantilever | Gold | 125 °C | -40 °C | Non Specified - Dual Edge | Green | 10 Áin | 0.25 Ám | Flush Mount Side Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 3.25 mm | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
846-042 Series
42 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
