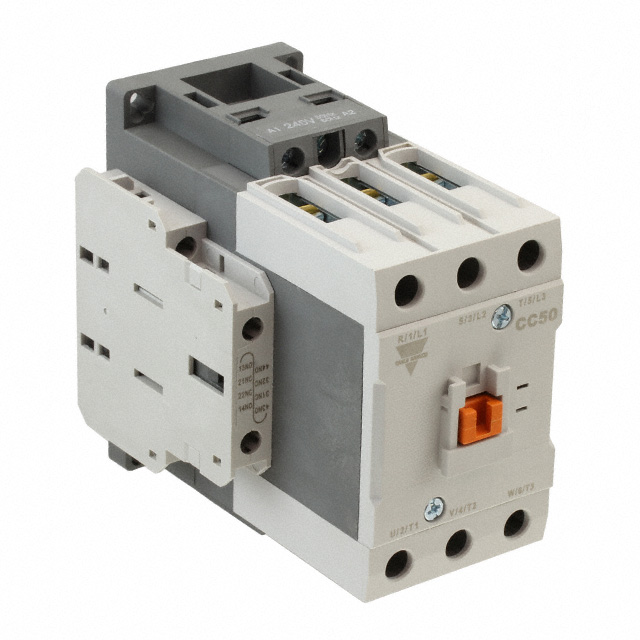

CC50LA240
ActiveCARLO GAVAZZI
3P CONT L 240V50/60HZ 2NO2NC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CC50LA240
ActiveCARLO GAVAZZI
3P CONT L 240V50/60HZ 2NO2NC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CC50LA240 |
|---|---|
| Coil Voltage | 240 VAC |
| Contact Form | 3PST-NO (3 Form A) |
| Contact Rating (Current) | 50 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 204 VAC |
| Must Release Voltage | 72 VAC/DC |
| Operate Time | 12 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -5 °C |
| Release Time | 4 ms |
| Switching Voltage | 690 VAC |
| Termination Style | Box Lug |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 157.70 | |
| 10 | $ 149.82 | |||
| 50 | $ 141.93 | |||
Description
General part information
CC50LA Series
3P CONT L 240V50/60HZ 2NO2NC
