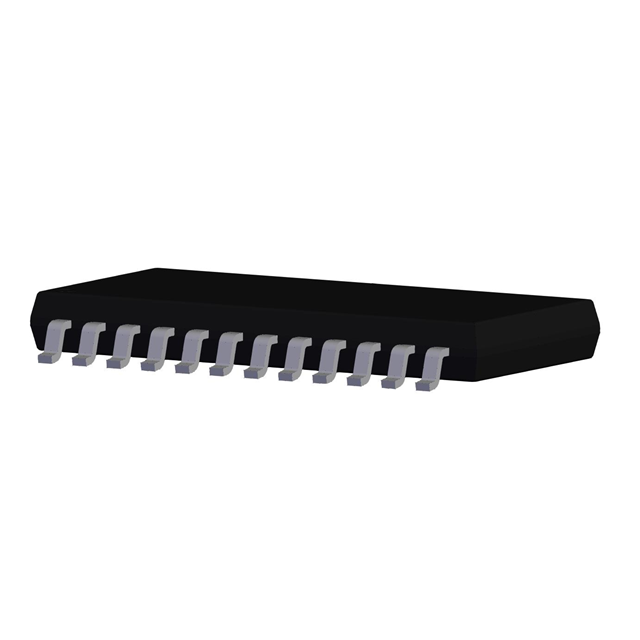

LC87F2R04AU-MFP-H
ActiveSanyo
MICROCONTROLLER 8-BIT LC8XX CPU
Deep-Dive with AI
Search across all available documentation for this part.
LC87F2R04AU-MFP-H
ActiveSanyo
MICROCONTROLLER 8-BIT LC8XX CPU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LC87F2R04AU-MFP-H |
|---|---|
| Connectivity | SIO, UART/USART |
| Core Processor | LC87 |
| Core Size | 8-Bit |
| Data Converters [custom] | 12 b |
| Data Converters [custom] | 8 |
| Mounting Type | Surface Mount |
| Number of I/O | 21 I/O |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 24-LFSOP |
| Program Memory Size | 4 KB |
| Program Memory Type | FLASH |
| RAM Size | 128 x 8 |
| Speed | 12 MHz |
| Supplier Device Package | 24-SSOP |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 417 | $ 0.72 | |
Description
General part information
LC87F Series
LC87 - Microcontroller IC 8-Bit 12MHz 4KB (4K x 8) FLASH 24-SSOP
Documents
Technical documentation and resources
No documents available
