542ACA002522BBGR

NRND

Skyworks Solutions Inc.

XTAL OSCILLATOR

Search across all available documentation for this part.

NRND

Skyworks Solutions Inc.

XTAL OSCILLATOR

Technical Specifications

Parameters and characteristics for this part

Specification	542ACA002522BBGR

Base Resonator	Crystal
Current - Supply (Disable) (Max) [Max]	100 mA
Current - Supply (Max) [Max]	132 mA
Frequency - Output 1	25 MHz, 10 MHz, 200 MHz, 40 MHz
Frequency Stability	7 ppm
Function	Enable/Disable
Height [z]	1.33 mm
Height [z]	0.052 "
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVPECL

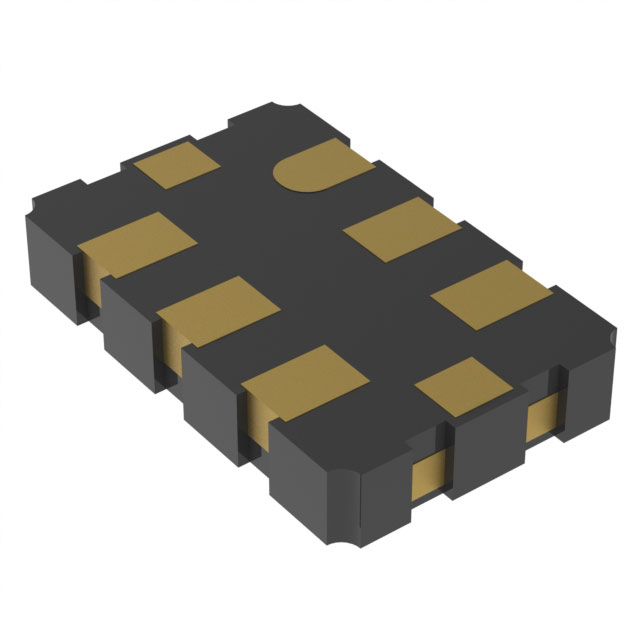

Package / Case	8-SMD, No Lead
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	0.126 "
Size / Dimension [y]	3.2 mm
Type	XO (Standard)
Voltage - Supply	2.5 V, 3.3 V

Part	Base Resonator	Operating Temperature [Max]	Operating Temperature [Min]	Function	Package / Case	Frequency - Output 1	Current - Supply (Disable) (Max) [Max]	Height [z]	Height [z]	Type	Current - Supply (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Frequency Stability	Voltage - Supply	Output
Skyworks Solutions Inc. 542ACA002522BBGR	Crystal	85 °C	-40 °C	Enable/Disable	8-SMD No Lead	10 MHz 25 MHz 40 MHz 200 MHz	100 mA	1.33 mm	0.052 "	XO (Standard)	132 mA	0.197 in	0.126 "	3.2 mm	5 mm	7 ppm	2.5 V 3.3 V	LVPECL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	250	$ 13.34

General part information

LVPECL XO (Standard) Pin Configurable Oscillator 2.5V, 3.3V 8-SMD, No Lead
