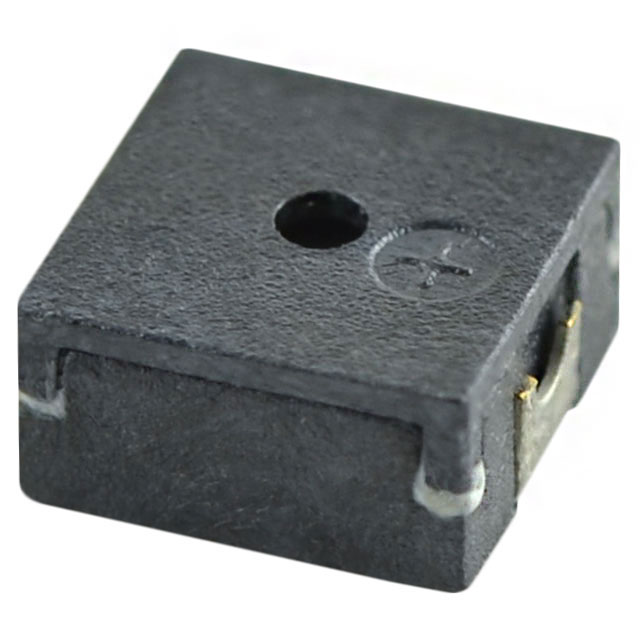

CMT-4023S-SMT-TR
ActiveCUI Devices
BUZZER MAGNETIC 3V 4X4MM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMT-4023S-SMT-TR |
|---|---|
| Current - Supply | 90 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 4 kHz |
| Height - Seated (Max) [Max] [z] | 2.5 mm |
| Height - Seated (Max) [Max] [z] | 0.098 in |
| Input Type | Zero-Peak Signal |
| Mounting Type | Surface Mount |
| Operating Mode | Single Tone |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Size / Dimension [x] | 4 mm |
| Size / Dimension [x] | 0.157 " |
| Size / Dimension [y] | 0.157 in |
| Size / Dimension [y] | 4 mm |
| Sound Pressure Level (SPL) | 70 dB |
| Technology | Magnetic |
| Termination | Solder Pads |
| Voltage - Rated | 3 VDC |
| Voltage Range [Max] | 4 V |
| Voltage Range [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.39 | |
| 10 | $ 1.98 | |||
| 25 | $ 1.83 | |||
| 50 | $ 1.72 | |||
| 100 | $ 1.61 | |||
| 250 | $ 1.49 | |||
| 500 | $ 1.38 | |||
| 1000 | $ 1.36 | |||
| Digi-Reel® | 1 | $ 2.39 | ||
| 10 | $ 1.98 | |||
| 25 | $ 1.83 | |||
| 50 | $ 1.72 | |||
| 100 | $ 1.61 | |||
| 250 | $ 1.49 | |||
| 500 | $ 1.38 | |||
| 1000 | $ 1.36 | |||
| Tape & Reel (TR) | 3000 | $ 1.60 | ||
Description
General part information
CMT-4023 Series
Buzzers Transducer, Externally Driven Magnetic 3 V 90mA 4kHz 70dB @ 3V, 10cm Surface Mount Solder Pads
