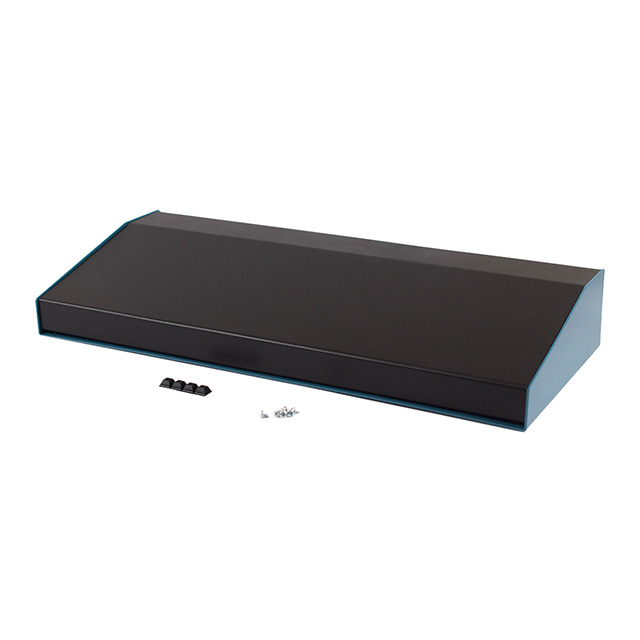

1456WH3BKBU

Active

Hammond Manufacturing

CONSOLE ALUM 20.26"L X 8.61"W

Deep-Dive with AI

Search across all available documentation for this part.

Documents1456 Series

1456WH3BKBU

Active

Hammond Manufacturing

CONSOLE ALUM 20.26"L X 8.61"W

Deep-Dive with AI

Documents1456 Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1456WH3BKBU

Area (L x W)	174 in²
Area (L x W)	1123 cm²
Color	Black, Blue
Container Type	Console
Design	Slanted Top
Features	Slope
Features	15 °
Height [z]	81.53 mm
Height [z]	3.21 in
Material	Metal, Aluminum
Size / Dimension	514.6 mm, 218.69 mm
Size / Dimension [x]	20.26 in
Size / Dimension [y]	8.61 "
Thickness	2.06 mm
Thickness	0.081 in

1456 Series

Part	Container Type	Features	Features	Area (L x W) [x]	Area (L x W) [x]	Material	Design	Thickness	Thickness	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Color	Area (L x W)	Area (L x W)	Area (L x W) [custom]	Size / Dimension	Area (L x W) [custom]	Area (L x W) [custom]	Size / Dimension
Hammond Manufacturing 1456KG4BKBU	Console	Slope	30 °	492 cm²	76.2 in²	Aluminum Metal	Slanted Top	2.06 mm	0.081 in	106.93 mm	4.21 in	189.99 mm	258.57 mm	10.18 in	7.48 in	Black Blue
Hammond Manufacturing 1456RL3BKBU	Console	Slope	15 °			Aluminum Metal	Slanted Top	2.06 mm	0.081 in	81.53 mm	3.21 in	294.89 mm	434.85 mm	17.12 "	11.61 in	Black Blue	1284 cm˛	199 in˛
Hammond Manufacturing 1456KG4WHBU	Console	Slope	30 °	492 cm²	76.2 in²	Aluminum Metal	Slanted Top	2.06 mm	0.081 in	106.93 mm	4.21 in	189.99 mm	258.57 mm	10.18 in	7.48 in	Blue White
Hammond Manufacturing 1456NEK4BKBK	Console					Aluminum Metal	Slanted Top	2.06 mm	0.081 in	101.6 mm	101.6 mm	152.4 mm	254 mm	10 in	6 "	Black
Hammond Manufacturing 1456WK4BKBU	Console	Slope	30 °			Aluminum Metal	Slanted Top	2.06 mm	0.081 in	106.93 mm	4.21 in	266.19 mm	514.6 mm	20.26 in	10.48 in	Black Blue	1368 cm²	212 in²
Hammond Manufacturing 1456KH3WHCWW	Console	Slope Walnut Side Panels	15 °			Aluminum Metal Wood	Slanted Top	2.06 mm	0.081 in	81.53 mm	3.21 in	218.69 mm	258.57 mm	10.18 in	8.61 "		566 cm²		87.7 in²
Hammond Manufacturing 1456WH3BKBU	Console	Slope	15 °			Aluminum Metal	Slanted Top	2.06 mm	0.081 in	81.53 mm	3.21 in			20.26 in	8.61 "	Black Blue	1123 cm²	174 in²		218.69 mm 514.6 mm
Hammond Manufacturing 1456PH3WHBU	Console	Slope	15 °			Aluminum Metal	Slanted Top	2.06 mm	0.081 in	81.53 mm	3.21 in	218.69 mm	360.17 mm	14.18 in	8.61 "	Blue White					787 cm²	122 in²
Hammond Manufacturing 1456KK4BKBU	Console	Slope	30 °			Aluminum Metal	Slanted Top	2.06 mm	0.081 in	106.93 mm	4.21 in					Black Blue	690 cm²	107 in²		10.18 " 10.48 "			258.57 mm 266.19 mm
Hammond Manufacturing 1456KK4WHBU	Console	Slope	30 °			Aluminum Metal	Slanted Top	2.06 mm	0.081 in	106.93 mm	4.21 in					Blue White	690 cm²	107 in²		10.18 " 10.48 "			258.57 mm 266.19 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 64.43
		5	$ 60.40
		10	$ 56.38
		25	$ 55.37
		50	$ 54.36
		100	$ 53.56

Description

General part information

1456 Series

Console Metal, Aluminum Black, Blue Slanted Top 20.260" L x 8.610" W (514.60mm x 218.69mm) X 3.210" (81.53mm)

Documents

Technical documentation and resources

1456 Series

Datasheet
