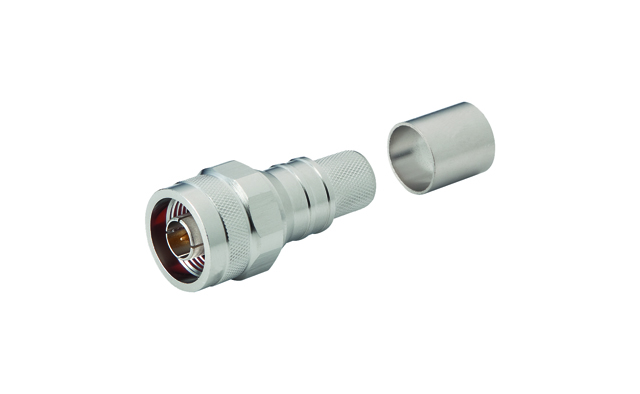

EZ-500-NMH-X

Active

Amphenol Times Microwave Systems

N-MALE (PLUG) CRIMP CONNECTOR (N

Search across all available documentation for this part.

Active

Amphenol Times Microwave Systems

N-MALE (PLUG) CRIMP CONNECTOR (N

Technical Specifications

Parameters and characteristics for this part

Specification	EZ-500-NMH-X

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-500
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Push On
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Center Contact Material	Number of Ports	Body Material	Frequency - Max [Max]	Connector Style	Housing Color	Center Contact Plating	Voltage Rating	Connector Type	Dielectric Material	Mounting Type	Impedance	Contact Termination	Mating Cycles	Cable Group	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Body Finish
Amphenol Times Microwave Systems EZ-500-NMH-X	Beryllium Copper	1	Brass	6000 MHz	N Type	Silver	Gold	500 V	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	50 Ohms	Push On	500	LMR-500	155 °C	-55 °C	Crimp	White Bronze
Amphenol Times Microwave Systems EZ-500-716M-X		1		7.5 GHz	7/16 DIN	Silver	Gold		Male Pin Plug		Free Hanging (In-Line)	50 Ohms	Push On		LMR-500	85 °C	-40 °C	Crimp
Amphenol Times Microwave Systems EZ-500-716M-RA-X		1		7.5 GHz	7/16 DIN	Silver	Gold		Male Pin Plug		Free Hanging (In-Line) Right Angle	50 Ohms	Push On		LMR-500	85 °C	-40 °C	Crimp
Amphenol Times Microwave Systems EZ-500-4310M-X	Beryllium Copper	1	Brass	6000 MHz	4.3/10	Silver	Gold		Male Pin Plug	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	50 Ohms	Push On		LMR-500	125 °C	-40 °C	Crimp	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	50	$ 23.85

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Push On

Technical documentation and resources

No documents available
