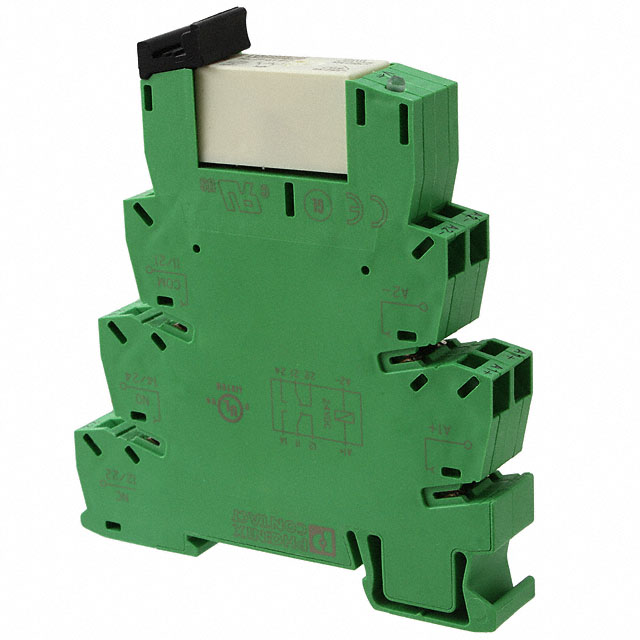

2912507

Obsolete

Phoenix Contact

RELAY GEN PURPOSE DPDT 6A 24V

Search across all available documentation for this part.

Obsolete

Phoenix Contact

RELAY GEN PURPOSE DPDT 6A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	2912507

Coil Current	18 mA
Coil Resistance	1.33 kOhms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	6 A
Features	Lighted Indicator, Socket Included
Mounting Type	DIN Rail
Operate Time	8 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Spring Terminal

Part	Coil Current	Coil Resistance	Contact Rating (Current)	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Switching Voltage	Coil Type	Contact Form	Contact Material	Mounting Type	Features	Coil Voltage	Relay Type	Release Time	Operate Time
Phoenix Contact 2912510	17.5 mA	2.182 kOhms	6 A	-40 °C	60 °C	Spring Terminal	250 VAC 250 VDC	Non Latching	DPDT (2 Form C)	Silver Nickel (AgNi)	DIN Rail	Lighted Indicator Socket Included	24 VAC	General Purpose	10 ms	8 ms
Phoenix Contact 2912507	18 mA	1.33 kOhms	6 A	-40 °C	60 °C	Spring Terminal	250 VAC 250 VDC	Non Latching	DPDT (2 Form C)	Silver Nickel (AgNi)	DIN Rail	Lighted Indicator Socket Included	24 VDC	General Purpose	10 ms	8 ms
Phoenix Contact 2912549	4.5 mA		6 A	-40 °C	60 °C	Spring Terminal	250 VAC 250 VDC	Non Latching	DPDT (2 Form C)	Silver Nickel (AgNi)	DIN Rail	Lighted Indicator Socket Included	120 VAC 120 VDC	General Purpose	10 ms	7 ms
Phoenix Contact 2912523	20 mA	2.4 kOhms	6 A	-40 °C	60 °C	Spring Terminal	250 VAC 250 VDC	Non Latching	DPDT (2 Form C)	Silver Nickel (AgNi)	DIN Rail	Lighted Indicator Socket Included	48 VDC	General Purpose	10 ms	8 ms
Phoenix Contact 2912578	18 mA	1.33 kOhms	6 A	-40 °C	60 °C	Spring Terminal	250 VAC 250 VDC	Non Latching	DPDT (2 Form C)	Gold (Au) Silver Nickel (AgNi)	DIN Rail	Lighted Indicator Socket Included	24 VDC	General Purpose	10 ms	8 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay DPDT (2 Form C) 24VDC Coil DIN Rail
