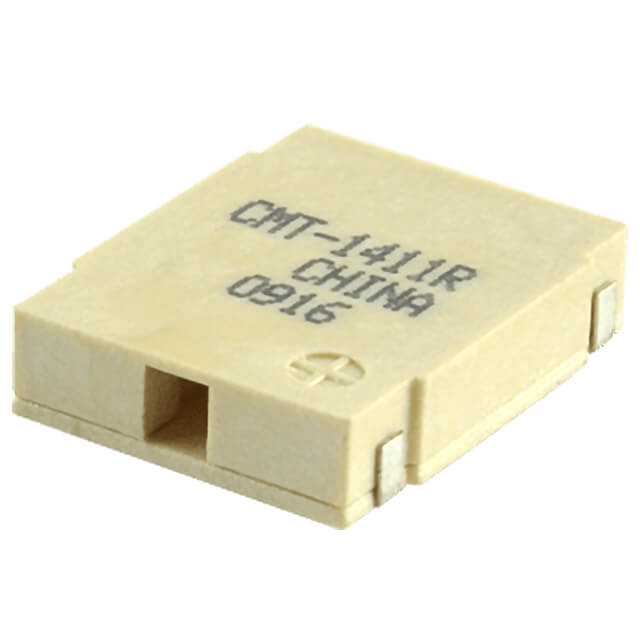

CMT-1411R-SMT-TR

Active

CUI Devices

SOUND TRANSDUCER: ELECTROMAGNETIC SIGNALLER; SMD; 3.2KHZ; 90MA

Search across all available documentation for this part.

Active

CUI Devices

SOUND TRANSDUCER: ELECTROMAGNETIC SIGNALLER; SMD; 3.2KHZ; 90MA

Technical Specifications

Parameters and characteristics for this part

Specification	CMT-1411R-SMT-TR

Current - Supply	90 mA
Driver Circuitry	Externally Driven, Transducer
Frequency	3.2 kHz
Height - Seated (Max)	4.2 mm
Height - Seated (Max) [Max]	0.165 in
Input Type	Zero-Peak Signal
Mounting Type	Surface Mount
Operating Mode	Single Tone
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Port Location	Side
Size / Dimension [x]	0.433 in
Size / Dimension [x]	11 mm
Size / Dimension [y]	0.551 in
Size / Dimension [y]	14 mm
Sound Pressure Level (SPL)	87 dB
Technology	Magnetic
Termination	Solder Pads
Voltage - Rated	5 V
Voltage Range [Max]	7 V
Voltage Range [Min]	4 VDC

Part	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Operating Mode	Input Type	Technology	Port Location	Height - Seated (Max) [Max]	Height - Seated (Max)	Frequency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Termination	Driver Circuitry	Sound Pressure Level (SPL)	Voltage Range [Min]	Voltage Range [Max]	Current - Supply
CUI Devices CMT-1411R-SMT-TR	5 V	85 °C	-40 °C	Single Tone	Zero-Peak Signal	Magnetic	Side	0.165 in	4.2 mm	3.2 kHz	0.433 in	0.551 in	14 mm	11 mm	Surface Mount	Solder Pads	Externally Driven Transducer	87 dB	4 VDC	7 V	90 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.19
	Digi-Reel®	1	$ 3.19
	Tape & Reel (TR)	800	$ 1.83
TME	N/A	800	$ 2.72

General part information

Buzzers Transducer, Externally Driven Magnetic 5 V 90mA 3.2kHz 87dB @ 5V, 10cm Surface Mount Solder Pads
