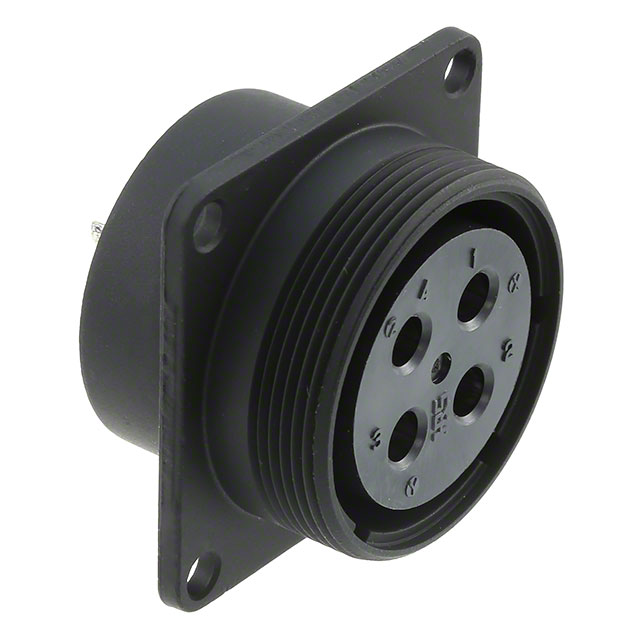

JR25WRH-4S
ActiveHirose Electric USA, Inc.
CONN RCPT FMALE 4P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JR25WRH-4S
ActiveHirose Electric USA, Inc.
CONN RCPT FMALE 4P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JR25WRH-4S |
|---|---|
| Applications | Telecommunications, Industrial, Automotive |
| Cable Opening [diameter] | 1.098 in |
| Cable Opening [diameter] | 27.9 mm |
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | 78.7 µin |
| Contact Finish Thickness - Mating | 2 µm |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 30 A |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Black Chromium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 25 |
| Voltage Rating | 300 VAC, 420 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 25.21 | |
| 10 | $ 21.42 | |||
| 25 | $ 20.08 | |||
| 50 | $ 19.12 | |||
| 100 | $ 18.21 | |||
| 250 | $ 17.07 | |||
| 500 | $ 16.26 | |||
Description
General part information
JR25WRH Series
4 Position Circular Connector Receptacle, Female Sockets Solder Cup
