VI-PU11-EUU

Active

Vicor Corporation

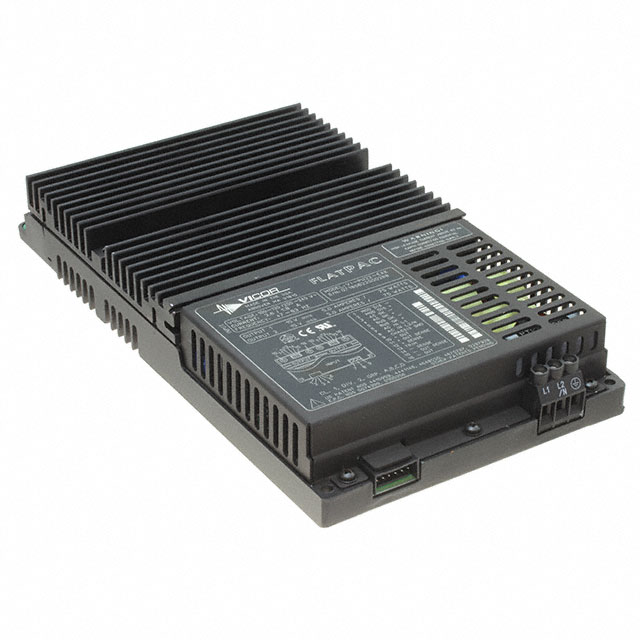

AC/DC CONVERTER 2X12V 400W

Search across all available documentation for this part.

Active

Vicor Corporation

AC/DC CONVERTER 2X12V 400W

Technical Specifications

Parameters and characteristics for this part

Specification	VI-PU11-EUU

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	40 A
Current - Output 2	40 A
Efficiency	88 %
Features	Remote Sense, Adjustable Output
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Size / Dimension [x]	234.95 mm, 234.8 mm
Size / Dimension [y]	4.96 in, 126 mm
Size / Dimension [z]	1.37 in, 34.8 mm
Type	Enclosed
Voltage - Input [Max]	132 VAC, 264 VAC
Voltage - Input [Min]	90 VAC, 180 VAC
Voltage - Isolation	4.242 kV
Voltage - Output 1	12 V
Voltage - Output 2	12 V

Part	Current - Output 1	Applications	Voltage - Isolation	Mounting Type	Voltage - Output 2	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Type	Number of Outputs	Current - Output 2
Vicor Corporation VI-PU11-EYY
Vicor Corporation VI-PU11-EUU	40 A	ITE (Commercial)	4.242 kV	Chassis Mount	12 V	90 VAC 180 VAC	132 VAC 264 VAC	12 V	88 %	1.37 in 34.8 mm	234.8 mm 234.95 mm	4.96 in 126 mm	Adjustable Output Remote Sense	0 °C	85 °C	CE	Enclosed	2	40 A
Vicor Corporation VI-PU11-EVV
Vicor Corporation VI-PU11-CWW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1588.33

General part information

Enclosed AC DC Converters 2 Output 12V 12V 90 ~ 132 VAC, 180 ~ 264 VAC Input

Technical documentation and resources
