7038-0370
ActiveAmphenol SV Microwave

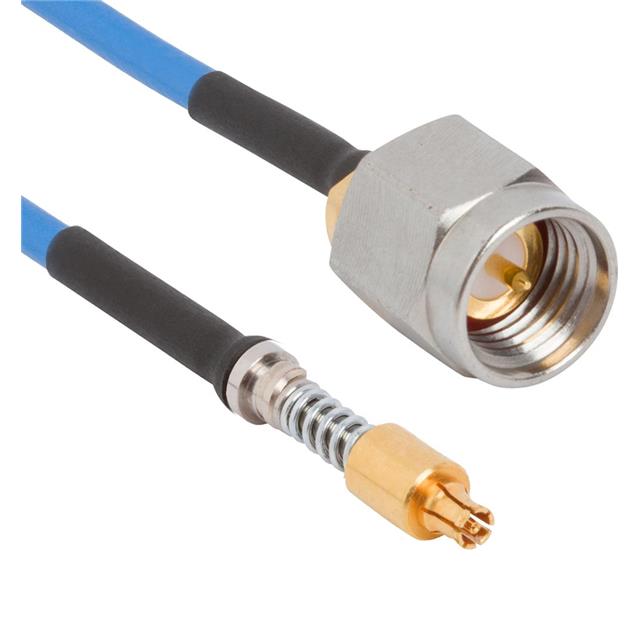

CBL ASSY SMA-SMPS JACK-PLUG 12"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7038-0370
ActiveAmphenol SV Microwave
CBL ASSY SMA-SMPS JACK-PLUG 12"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7038-0370 |
|---|---|
| 1st Connector | SMPS Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | TFlex-405 |
| Color | Blue |
| Features | Shielded |
| Frequency - Max [Max] | 18 GHz |
| Length | 12 " |
| Length | 304.8 mm |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Overall Impedance | 50 Ohms |
| Style | SMA to SMPS |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 10 | $ 256.57 | |
Description
General part information
7038-03 Series
Cable Assembly Coaxial SMA to SMPS TFlex-405 12.00" (304.80mm)
