3422.0014.11
ActiveSCHURTER Inc.

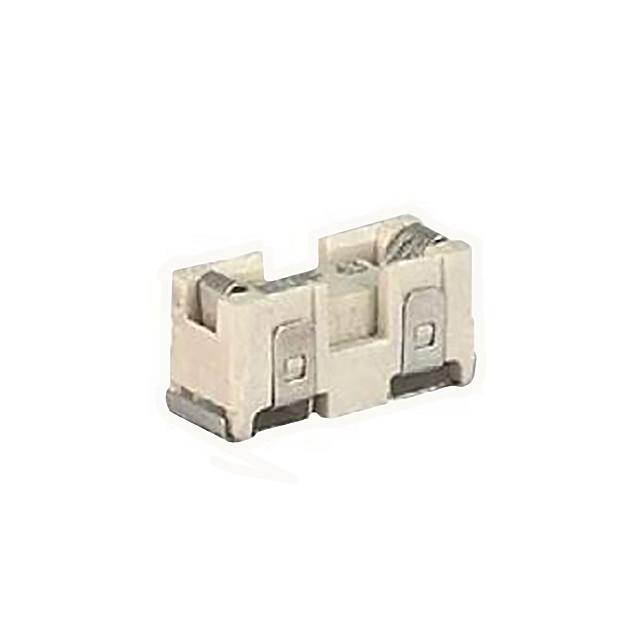

FUSE BRD MNT 3A 63VAC 63VDC 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3422.0014.11
ActiveSCHURTER Inc.
FUSE BRD MNT 3A 63VAC 63VDC 2SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3422.0014.11 |
|---|---|
| Breaking Capacity @ Rated Voltage | 50 A |
| Current Rating (Amps) | 3 A |
| Fuse Type | Board Mount |
| Melting I²t | 1.3 |
| Mounting Type | Requires Holder, Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-SMD, Square End Block with Holder |
| Response Time | Fast Blow |
| Size / Dimension [x] | 12 mm |
| Size / Dimension [x] | 0.472 in |
| Size / Dimension [y] | 5.2 mm |
| Size / Dimension [y] | 0.205 " |
| Size / Dimension [z] | 6 mm |
| Size / Dimension [z] | 0.236 " |
| Voltage Rating - AC | 63 V |
| Voltage Rating - DC | 63 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.35 | |
| 5 | $ 3.61 | |||
| 10 | $ 3.33 | |||
| 50 | $ 2.76 | |||
| 100 | $ 2.55 | |||
| 300 | $ 2.24 | |||
| 500 | $ 2.11 | |||
| 1000 | $ 1.94 | |||
| 5000 | $ 1.74 | |||
Description
General part information
3422.0014 Series
3 A 63 V AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Requires Holder, Surface Mount 2-SMD, Square End Block with Holder
