DB2CC1AA

Active

ZF Electronics

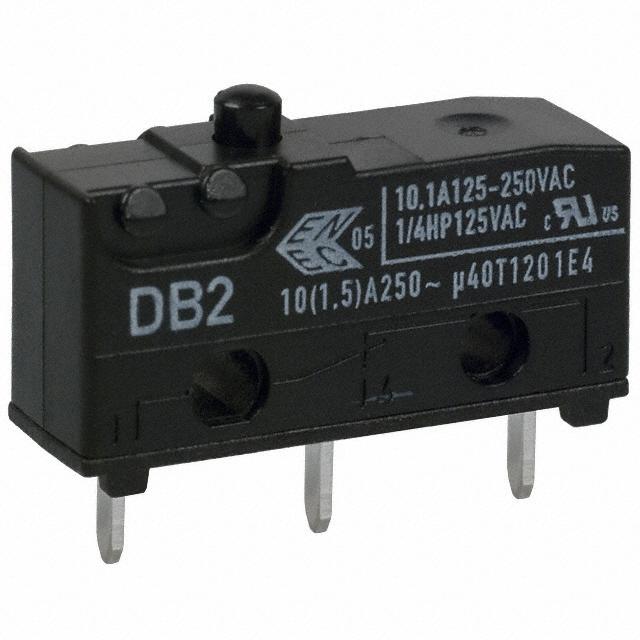

SWITCH SNAP ACTION SPDT 10A 125V

Search across all available documentation for this part.

Active

ZF Electronics

SWITCH SNAP ACTION SPDT 10A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Mechanical Life	Operating Position [custom]	Operating Position [custom]	Termination Style	Mounting Type	Pretravel	Pretravel	Overtravel	Overtravel	Ingress Protection	Circuit	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Voltage Rating - AC	Actuator Type	Operating Force	Differential Travel	Differential Travel	Switch Function	Operating Position	Operating Position
ZF Electronics DB2C-B1LC	10000000 Cycles	0.437 "	11.1 mm	Quick Connect - 0.110" (2.8mm)	Chassis Mount	0.197 in	5 mm	1.5 mm	0.06 "	IP50	SPDT	10 A	-40 °C	120 °C	6000 Cycles	125 V	Lever Straight	85 gf	1 mm	0.04 in	On-Mom
ZF Electronics DB2CA1AA	10000000 Cycles			Solder Lug	Chassis Mount	0.04 in	1 mm	0.6 mm	0.025 "	IP50	SPDT	10 A	-40 °C	120 °C	6000 Cycles	125 V	Round (Pin Plunger)	0.25 kgf	0.1 mm	0.004 in	On-Mom	8.4 mm	0.33 in
ZF Electronics DB2CC1AA	10000000 Cycles			PC Pin	Through Hole	0.04 in	1 mm	0.6 mm	0.025 "	IP50	SPDT	10 A	-40 °C	120 °C	6000 Cycles	125 V	Round (Pin Plunger)	0.25 kgf	0.1 mm	0.004 in	On-Mom	8.4 mm	0.33 in
ZF Electronics DB2CB1AA	10000000 Cycles			Quick Connect - 0.110" (2.8mm)	Chassis Mount	0.04 in	1 mm	0.6 mm	0.025 "	IP50	SPDT	10 A	-40 °C	120 °C	6000 Cycles	125 V	Round (Pin Plunger)	0.25 kgf	0.1 mm	0.004 in	On-Mom	8.4 mm	0.33 in
ZF Electronics DB2CB1RC	10000000 Cycles			Quick Connect - 0.110" (2.8mm)	Chassis Mount	0.197 in	5 mm	1.5 mm	0.06 "	IP50	SPDT	10 A	-40 °C	120 °C	6000 Cycles	125 V	Lever Roller	95 gf	1 mm	0.04 in	On-Mom	16.2 mm	0.638 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Through Hole
