UPR40/TR13

Active

Microsemi Corporation

DIODE GEN PURP 400V 2A POWERMITE

Search across all available documentation for this part.

Active

Microsemi Corporation

DIODE GEN PURP 400V 2A POWERMITE

Technical Specifications

Parameters and characteristics for this part

Specification	UPR40/TR13

Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C

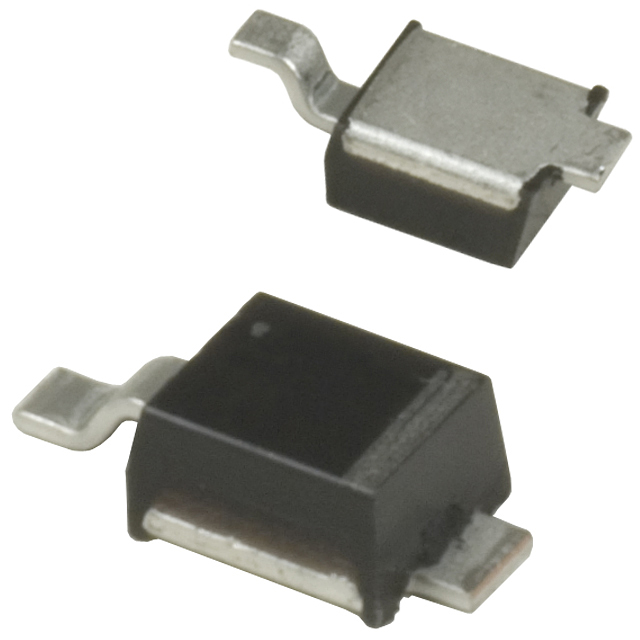

Package / Case	DO-216AA
Reverse Recovery Time (trr)	50 ns
Speed	200 mA, 500 ns
Supplier Device Package	Powermite
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	400 V
Voltage - Forward (Vf) (Max) @ If	1.25 V

Part	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Reverse Recovery Time (trr)	Speed	Package / Case	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Technology	Mounting Type
Microsemi Corporation UPR40/TR13	150 °C	-55 °C	2 A	400 V	Powermite	50 ns	200 mA 500 ns	DO-216AA	1.25 V	10 µA	Standard	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	12000	$ 2.62

General part information

Diode 400 V 2A Surface Mount Powermite
