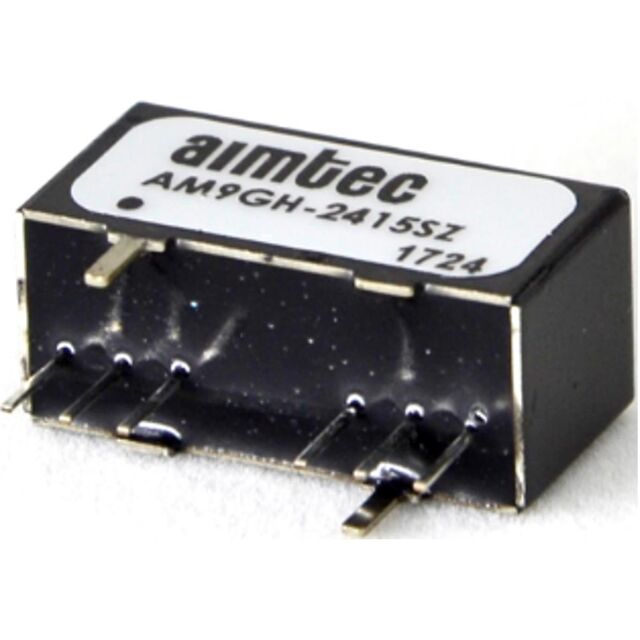

AM9GH-2403SZ
Activeaimtec
DC DC CONVERTER 3.3V 9W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AM9GH-2403SZ
Activeaimtec
DC DC CONVERTER 3.3V 9W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AM9GH-2403SZ |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 2 A |
| Features | Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SIP Module |
| Power (Watts) | 9 W |
| Size / Dimension [x] | 0.86 in |
| Size / Dimension [x] | 21.8 mm |
| Size / Dimension [y] | 0.38 in |
| Size / Dimension [y] | 9.6 mm |
| Size / Dimension [z] | 11.2 mm |
| Size / Dimension [z] | 0.44 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 26.15 | |
| 5 | $ 25.54 | |||
| 10 | $ 25.34 | |||
| 20 | $ 24.95 | |||
| 40 | $ 23.76 | |||
| 60 | $ 22.41 | |||
| 80 | $ 21.90 | |||
Description
General part information
AM9GH Series
Isolated Module DC DC Converter 1 Output 3.3V 2A 9V - 36V Input
