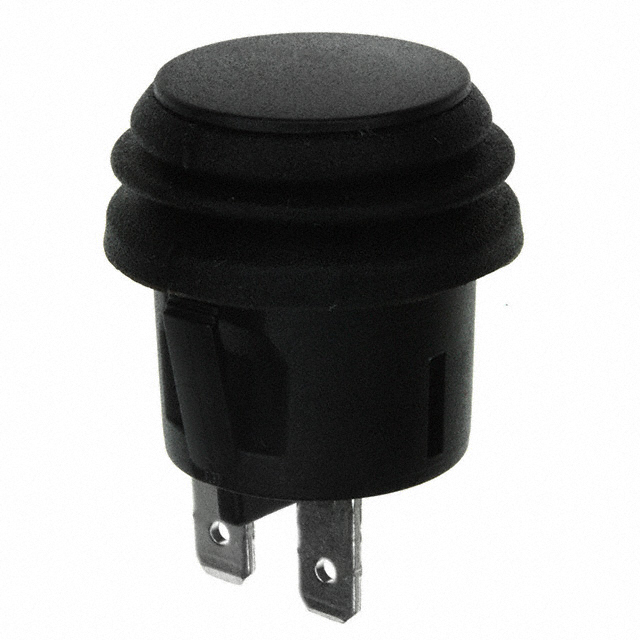

KFB2DNA1BBB
ActiveZF Electronics
SWITCH PUSH SPST-NO 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
KFB2DNA1BBB
ActiveZF Electronics
SWITCH PUSH SPST-NO 10A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KFB2DNA1BBB |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 10 A |
| Electrical Life | 6000 Cycles |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 20.2 mm |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 4.37 | |
| 10 | $ 3.90 | |||
| 25 | $ 3.70 | |||
| 50 | $ 3.57 | |||
| 100 | $ 3.38 | |||
| 250 | $ 3.23 | |||
| 500 | $ 2.97 | |||
| 1000 | $ 2.84 | |||
Description
General part information
KFB2DNA1 Series
Pushbutton Switch SPST-NO Standard Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
