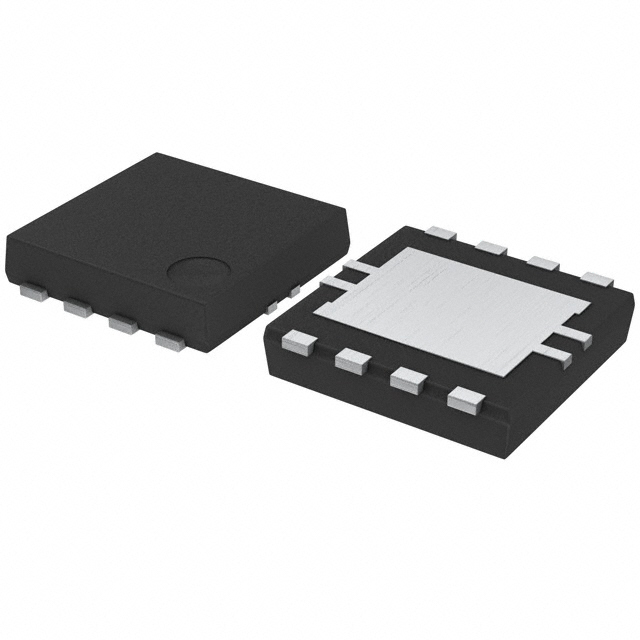

BD1754HFN-TR
NRNDRohm Semiconductor
IC LED DRV LIN MULT-STEP 8HSON
Deep-Dive with AI
Search across all available documentation for this part.
BD1754HFN-TR
NRNDRohm Semiconductor
IC LED DRV LIN MULT-STEP 8HSON
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BD1754HFN-TR |
|---|---|
| Applications | Backlight |
| Current - Output / Channel | 32 mA |
| Dimming | Multi-Step |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 °C |
| Package / Case | 8-PowerUDFN |
| Supplier Device Package | 8-HSON |
| Type | Linear |
| Voltage - Output [Max] | 4.1 V |
| Voltage - Output [Min] | 0.2 V |
| Voltage - Supply (Max) | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.08 | |
| 10 | $ 0.97 | |||
| 25 | $ 0.92 | |||
| 100 | $ 0.75 | |||
| 250 | $ 0.70 | |||
| 500 | $ 0.62 | |||
| 1000 | $ 0.58 | |||
| Digi-Reel® | 1 | $ 1.08 | ||
| 10 | $ 0.97 | |||
| 25 | $ 0.92 | |||
| 100 | $ 0.75 | |||
| 250 | $ 0.70 | |||
| 500 | $ 0.62 | |||
| 1000 | $ 0.58 | |||
| Tape & Reel (TR) | 3000 | $ 0.58 | ||
Description
General part information
BD1754 Series
LED Driver IC 4 Output Linear Multi-Step Dimming 32mA 8-HSON
