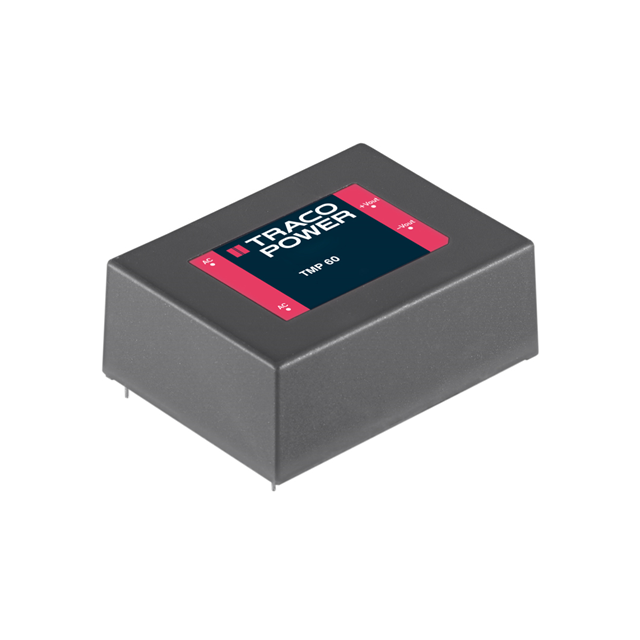

TMP 60148
ActiveTraco Power
AC/DC CONVERTER 48V 60W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMP 60148
ActiveTraco Power
AC/DC CONVERTER 48V 60W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMP 60148 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, CE, cURus, CB |
| Current - Output (Max) [Max] | 1.25 A |
| Efficiency | 84 % |
| Features | Universal Input, SCP, OTP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 6-DIP Module, 4 Leads |
| Power (Watts) | 60 W |
| Size / Dimension [x] | 88.9 mm |
| Size / Dimension [x] | 3.5 in |
| Size / Dimension [y] | 2.66 " |
| Size / Dimension [y] | 67.5 mm |
| Size / Dimension [z] | 34.2 mm |
| Size / Dimension [z] | 1.35 " |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 120 VDC |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 5 | $ 80.00 | |
Description
General part information
TMP 60 Series
Enclosed AC DC Converters 1 Output 48V 1.25A 85 ~ 264 VAC, 120 ~ 370 VDC Input
