VESD03A1C-02Z-GS08

Obsolete

Vishay General Semiconductor - Diodes Division

TVS DIODE 3.3VWM 10VC SOD923

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

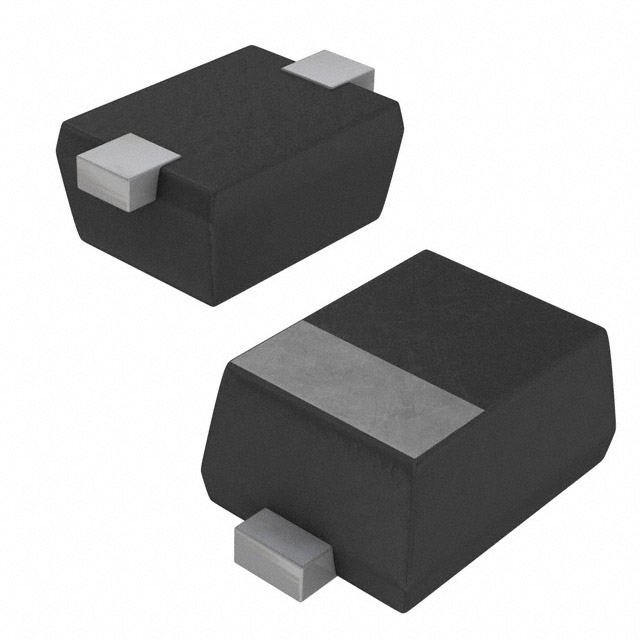

VESD03A1C-02Z-GS08

Obsolete

Vishay General Semiconductor - Diodes Division

TVS DIODE 3.3VWM 10VC SOD923

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VESD03A1C-02Z-GS08

Applications	General Purpose
Capacitance @ Frequency	78 pF
Current - Peak Pulse (10/1000µs)	9.5 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	SOD-923
Power - Peak Pulse	95 W
Power Line Protection	False
Supplier Device Package	SOD-923
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	5 V
Voltage - Clamping (Max) @ Ipp [Max]	10 V
Voltage - Reverse Standoff (Typ)	3.3 V

VESD03 Series

Part	Voltage - Reverse Standoff (Typ) [Max]	Voltage - Clamping (Max) @ Ipp [Max]	Unidirectional Channels	Supplier Device Package	Voltage - Breakdown (Min) [Min]	Type	Power - Peak Pulse	Package / Case	Qualification	Capacitance @ Frequency	Current - Peak Pulse (10/1000µs)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Grade	Unidirectional Channels [custom]	Voltage - Reverse Standoff (Typ)	Applications	Voltage - Clamping (Max) @ Ipp
Vishay General Semiconductor - Diodes Division VESD03A2-03GHG3-08	3 V	8.7 V	2	SOT-323	4.4 V	Zener	100 W	SC-70 SOT-323	AEC-Q101	112 pF	11.6 A	-55 °C	150 °C	Surface Mount	Automotive
Vishay General Semiconductor - Diodes Division VESD03C1-02V-G3-08	3 V	8.7 V		SOD-523	4.4 V	Zener	100 W	SC-79 SOD-523	AEC-Q101	112 pF	11.6 A	-55 °C	150 °C	Surface Mount	Automotive	1
Vishay General Semiconductor - Diodes Division VESD03A1C-02Z-GS08		10 V		SOD-923	5 V	Zener	95 W	SOD-923		78 pF	9.5 A	-40 °C	125 ¯C	Surface Mount		1	3.3 V	General Purpose
Vishay General Semiconductor - Diodes Division VESD03A2-03G-G3-08	3 V	8.7 V	2	SOT-323	4.4 V	Zener	100 W	SC-70 SOT-323	AEC-Q101	112 pF	11.6 A	-55 °C	150 °C	Surface Mount	Automotive
Vishay General Semiconductor - Diodes Division VESD03A1C-HD1-GS08		10 V		LLP1006-2L	5 V	Zener	95 W	SOD-882		78 pF	9.5 A	-40 °C	125 ¯C	Surface Mount		1	3.3 V	General Purpose
Vishay General Semiconductor - Diodes Division VESD03-02V-G-08	3 V			SOD-523	4 V	Zener	108 W	SC-79 SOD-523		110 pF	9 A	-40 °C	125 ¯C	Surface Mount		1		General Purpose	12 V
Vishay General Semiconductor - Diodes Division VESD03-02V-GS08				SOD-523	4 V	Zener		SC-79 SOD-523		110 pF	9 A	-40 °C	125 ¯C	Surface Mount		1	3 V	General Purpose	12 V
Vishay General Semiconductor - Diodes Division VESD03A1B-HD1-GS08		9 V		LLP1006-2L	5 V	Zener	31 W	SOD-882		25 pF	3.5 A	-40 °C	125 ¯C	Surface Mount		1	3.3 V	General Purpose
Vishay General Semiconductor - Diodes Division VESD03C1-02VHG3-08	3 V	8.7 V		SOD-523	4.4 V	Zener	100 W	SC-79 SOD-523	AEC-Q101	112 pF	11.6 A	-55 °C	150 °C	Surface Mount	Automotive	1
Vishay General Semiconductor - Diodes Division VESD03C1-HD1HG3-08	3 V	8.7 V		DFN1006-2A	4.45 V	Zener	100 W	0402 (1006 Metric)	AEC-Q101	112 pF	11.6 A	-55 °C	150 °C	Surface Mount	Automotive	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

VESD03 Series

10V Clamp 9.5A (8/20µs) Ipp Tvs Diode Surface Mount SOD-923
