7022AE

Active

TE Connectivity Aerospace, Defense and Marine

RELAY TIME DELAY 200SEC 10A 240V

Deep-Dive with AI

Search across all available documentation for this part.

Documents7000 AGASTAT Series Instr Sheet Datasheet

7022AE

Active

TE Connectivity Aerospace, Defense and Marine

RELAY TIME DELAY 200SEC 10A 240V

Deep-Dive with AI

Documents7000 AGASTAT Series Instr Sheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	7022AE

Circuit	DPDT (2 Form C)
Contact Rating @ Voltage	10 A, 240 VAC
Delay Time [Max]	200 Sec
Delay Time [Min]	20 Sec
Function	Off-Delay
Relay Type	Mechanical Relay
Termination Style	Screw Terminal
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Input Voltage
Voltage - Supply	120 VAC

1423162 Series

Part	Contact Rating @ Voltage	Termination Style	Relay Type	Delay Time [Max]	Delay Time [Min]	Function	Circuit	Timing Adjustment Method	Timing Initiate Method	Voltage - Supply	Voltage - Supply [Min]	Voltage - Supply [Max]
TE Connectivity Aerospace, Defense and Marine 6-1423162-2	10 A 240 VAC	Screw Terminal	Mechanical Relay	10 Min	1 Min	Off-Delay	DPDT (2 Form C)	Hand Dial	Input Voltage	480 VAC
TE Connectivity Aerospace, Defense and Marine 4-1423162-8	10 A 240 VAC	Screw Terminal	Mechanical Relay	50 Sec	5 Sec	Off-Delay	DPDT (2 Form C)	Hand Dial	Input Voltage	480 VAC
TE Connectivity Aerospace, Defense and Marine 7022BF	10 A 240 VAC	Screw Terminal	Mechanical Relay	10 Min	1 Min	Off-Delay	DPDT (2 Form C)	Hand Dial	Input Voltage	240 VAC
TE Connectivity Aerospace, Defense and Marine 7022KC	10 A 240 VAC	Screw Terminal	Mechanical Relay	15 Sec	1.5 Sec	Off-Delay	DPDT (2 Form C)	Hand Dial	Input Voltage		120 VAC/DC	240 VAC
TE Connectivity Aerospace, Defense and Marine 7-1423162-1
TE Connectivity Aerospace, Defense and Marine 7022BKX	10 A 240 VAC	Screw Terminal	Mechanical Relay	300 Sec	1 Sec	Off-Delay	DPDT (2 Form C)	Hand Dial	Input Voltage	240 VAC
TE Connectivity Aerospace, Defense and Marine 7022AI	10 A 240 VAC	Screw Terminal	Mechanical Relay	60 Min	6 Min	Off-Delay	DPDT (2 Form C)	Hand Dial	Input Voltage	120 VAC
TE Connectivity Aerospace, Defense and Marine 7022AE	10 A 240 VAC	Screw Terminal	Mechanical Relay	200 Sec	20 Sec	Off-Delay	DPDT (2 Form C)	Hand Dial	Input Voltage	120 VAC
TE Connectivity Aerospace, Defense and Marine 6-1423162-6	10 A 240 VAC	Screw Terminal	Mechanical Relay	1 Sec	0.1 Sec	Off-Delay	DPDT (2 Form C)	Hand Dial	Input Voltage	120 VAC
TE Connectivity Aerospace, Defense and Marine 8-1423162-2	10 A 240 VAC	Screw Terminal	Mechanical Relay	15 Sec	1.5 Sec	Off-Delay	DPDT (2 Form C)	Hand Dial	Input Voltage	24 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 727.11
		10	$ 647.29

Description

General part information

1423162 Series

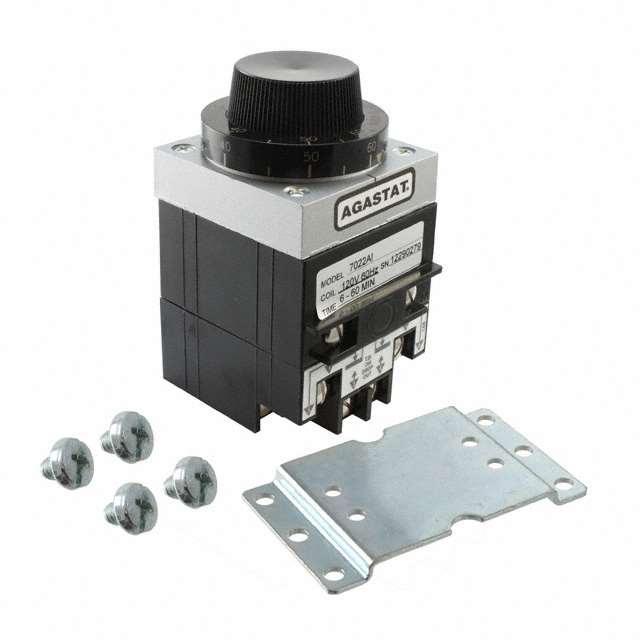

Off-Delay Time Delay Relay DPDT (2 Form C) 20 Sec ~ 200 Sec Delay 10A @ 240VAC Panel Mount
