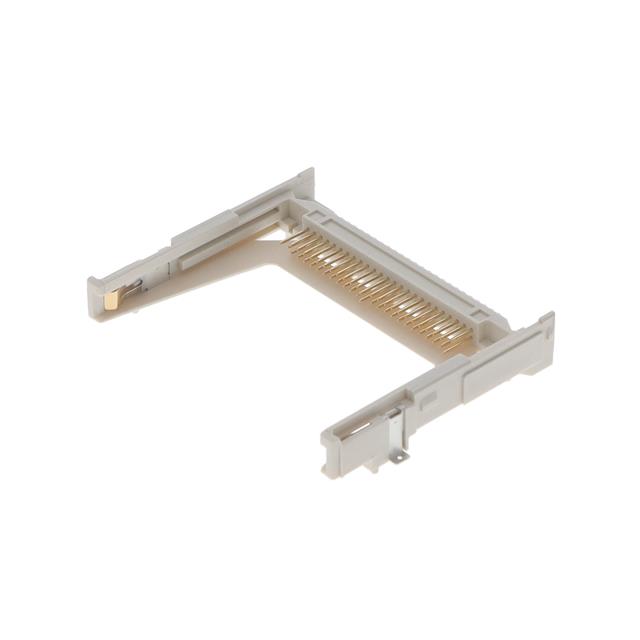

10064420-E0501LF
ActiveAmphenol ICC (FCI)
CONN FPC TOP
Deep-Dive with AI
Search across all available documentation for this part.
10064420-E0501LF
ActiveAmphenol ICC (FCI)
CONN FPC TOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10064420-E0501LF |
|---|---|
| Card Type | CompactFlash® - Type II |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Card Guide, Board Guide |
| Height Above Board | 7.9 mm |
| Height Above Board | 0.311 in |
| Insertion, Removal Method | Pull Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 50 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.71 | |
| 10 | $ 5.14 | |||
| 25 | $ 4.64 | |||
| 40 | $ 4.40 | |||
| 80 | $ 4.08 | |||
| 230 | $ 3.65 | |||
| 440 | $ 3.42 | |||
| 945 | $ 3.17 | |||
Description
General part information
10064420 Series
50 Position Card Connector CompactFlash® - Type II Surface Mount, Right Angle Gold
