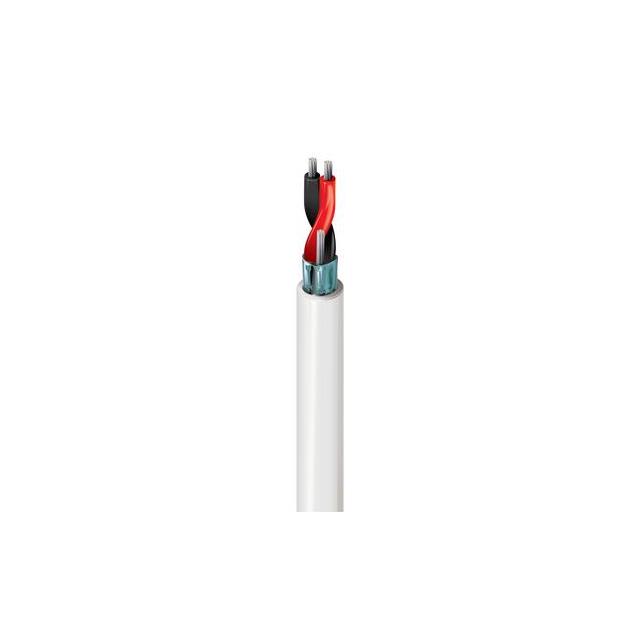

1801B 877U1000
ObsoleteBelden Inc.
2 #24 NFFEP FS FLMRST
Deep-Dive with AI
Search across all available documentation for this part.
1801B 877U1000
ObsoleteBelden Inc.
2 #24 NFFEP FS FLMRST
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1801B 877U1000 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Foam Fluorinated Ethylene-Propylene (FFEP) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.165 in |
| Jacket (Insulation) Diameter [diameter] | 4.19 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Jacket Color | Natural |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 2 |
| Ratings | UL Style CMP |
| Shield Coverage | 100 % |
| Shield Material | Polyester, Aluminum |
| Shield Type | Foil |
| Usage | Audio |
| Voltage | 300 V |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1801B Series
2 Conductor Multi-Conductor Cable Natural 24 AWG Foil 1000.0' (304.8m)
