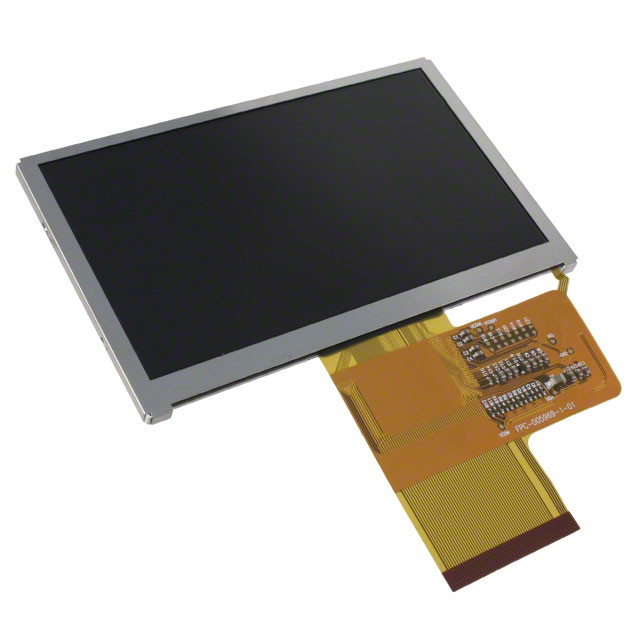

LCT-H480272M43W1
ActiveLumex Opto/Components Inc.
DISPLAY LCD-TFT 480X272
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LCT-H480272M43W1
ActiveLumex Opto/Components Inc.
DISPLAY LCD-TFT 480X272
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LCT-H480272M43W1 |
|---|---|
| Backlight | LED - White |
| Diagonal Screen Size | 109.22 mm |
| Diagonal Screen Size | 4.3 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pitch [x] | 0.2 mm |
| Dot Pitch [y] | 0.2 mm |
| Dot Pixels [x] | 480 |
| Dot Pixels [y] | 272 |
| Dot Size [y] | 0.2 mm |
| Dot Size [z] | 0.2 mm |
| Graphics Color | Green, Red, Blue |
| Interface | Parallel/Serial |
| Viewing Area [x] | 95.04 mm |
| Viewing Area [y] | 53.86 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LCT-H480272 Series
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel/Serial 4.3" (109.22mm) 480 x 272
