CF42SC 0.6MM A4

Active

Aearo Technologies LLC, a 3M company

CONFOR CF42SC 0.6MMT X A4

Search across all available documentation for this part.

Active

Aearo Technologies LLC, a 3M company

CONFOR CF42SC 0.6MMT X A4

Technical Specifications

Parameters and characteristics for this part

Specification	CF42SC 0.6MM A4

Color	Black
Density	101 kg/mł
Material	Polyurethane
Material Flammability Rating	UL94 HF-1
Size / Dimension [x]	297 mm
Size / Dimension [x]	11.69 "
Size / Dimension [y]	8.27 in
Size / Dimension [y]	210 mm
Thickness	0.6 mm
Thickness	0.024 in

Part	Material	Thickness	Thickness	Color	Density	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material Flammability Rating	Size / Dimension [custom]	Size / Dimension [custom]	Size / Dimension [custom]	Size / Dimension [custom]
Aearo Technologies LLC, a 3M company CF42SC 0.8MM A4	Polyurethane	0.031 in	0.79 mm	Black	101 kg/mł	297 mm	8.27 in	11.69 "	210 mm	UL94 HF-1
Aearo Technologies LLC, a 3M company CF42SC 0.6MM A4	Polyurethane	0.024 in	0.6 mm	Black	101 kg/mł	297 mm	8.27 in	11.69 "	210 mm	UL94 HF-1
Aearo Technologies LLC, a 3M company CF42SC 1MM A4	Polyurethane	0.039 in	1 mm	Black	101 kg/mł	297 mm	8.27 in	11.69 "	210 mm	UL94 HF-1
Aearo Technologies LLC, a 3M company CF42SC 0.8MM	Polyurethane	0.031 in	0.79 mm	Black	101 kg/mł					UL94 HF-1	127 mm	177.8 mm	7 in	5 in
Aearo Technologies LLC, a 3M company CF42SC 1.2MM A4	Polyurethane	0.047 in	1.2 mm	Black	101 kg/mł	297 mm	8.27 in	11.69 "	210 mm	UL94 HF-1
Aearo Technologies LLC, a 3M company CF42SC 1.2MM	Polyurethane	0.047 in	1.2 mm	Black	101 kg/mł					UL94 HF-1	127 mm	177.8 mm	7 in	5 in
Aearo Technologies LLC, a 3M company CF42SC/PSA 0.8MM	Polyurethane	0.031 in	0.79 mm	Black	101 kg/mł					UL94 HF-1	127 mm	177.8 mm	7 in	5 in
Aearo Technologies LLC, a 3M company CF42SC/PSA 0.6MM	Polyurethane	0.024 in	0.6 mm	Black	101 kg/mł					UL94 HF-1	127 mm	177.8 mm	7 in	5 in
Aearo Technologies LLC, a 3M company CF42SC/PSA 1.2MM	Polyurethane	0.047 in	1.2 mm	Black	101 kg/mł					UL94 HF-1	127 mm	177.8 mm	7 in	5 in
Aearo Technologies LLC, a 3M company CF42SC 0.6MM	Polyurethane	0.024 in	0.6 mm	Black	101 kg/mł					UL94 HF-1	127 mm	177.8 mm	7 in	5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

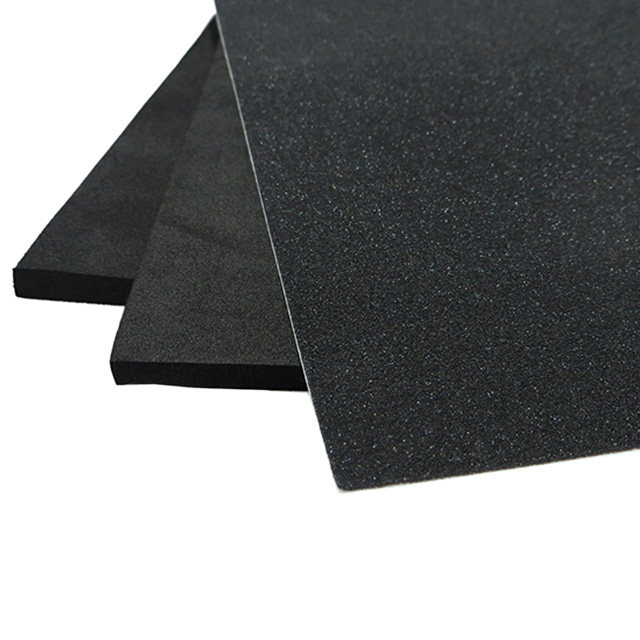

Foam 8.27" W x 11.69" L (210.0mm x 297.0mm) X 0.024" (0.60mm) Polyurethane Black

Technical documentation and resources

No documents available
