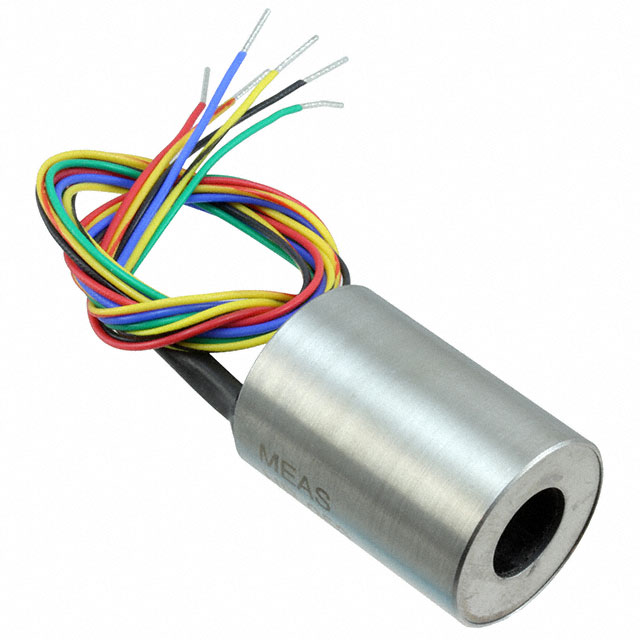

02560389-000

Active

TE Connectivity Measurement Specialties

SENSOR LVDT HR SERIES

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

SENSOR LVDT HR SERIES

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension	Features	Linear Range
TE Connectivity Measurement Specialties 02560995-000	-25 °C	85 °C	311.2 mm	General Purpose	101.6 mm
TE Connectivity Measurement Specialties 02561025-000	-25 °C	85 °C	177.8 mm		25.4 mm
TE Connectivity Measurement Specialties 02560421-000
TE Connectivity Measurement Specialties 02560994-200
TE Connectivity Measurement Specialties 02560442-000	0 °C	70 °C	104.1 mm		6 mm
TE Connectivity Measurement Specialties 02560389-000	-55 °C	150 °C	28.7 mm	High Reliability	1.27 mm
TE Connectivity Measurement Specialties 02561036-000
TE Connectivity Measurement Specialties 02560987-000	0 °C	70 °C	414.5 mm	General Purpose	76.19 mm
TE Connectivity Measurement Specialties 02560569-000
TE Connectivity Measurement Specialties 02560571-000

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SENSOR LVDT HR SERIES
